Description
Details
Manufacturer: APC

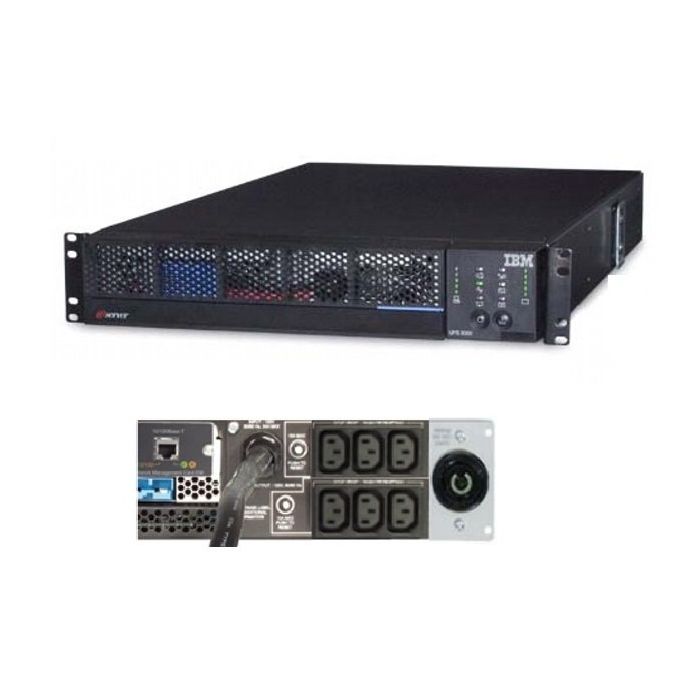

Model: IBM3000XRL2U APC IBM Smart-UPS 3000 XR RM 2U 100-127V
Condition: Refurbished with New Batteries
Part Number: IBM3000XRL2U
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The IBM3000XRL2U comes refurbished with new batteries. The IBM Smart-UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
IBM3000XRL2U Specifications:
Output:
|
Output Power Capacity |
2850 Watts / 3000 VA |
||||
|
Max Configurable Power |
2850 Watts / 3000 VA |
||||
|
Nominal Output Voltage |
100V, 120V |
||||
|
Efficiency at Full Load |
95.0% |
||||
|
Topology |
Line Interactive |
||||
|
Output Connections |
|
Input:
|
Nominal Input Voltage |
100V, 120V |
||
|
Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
||
|
Input Connections |
|
||
|
Cord Length |
10 feet (3.05 meters) |
Batteries & Runtime:
|
Battery Type |
VRLA |
|
Typical recharge time |
3 hour(s) |
|
RBC™ Quantity |
1 |
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, RJ-45 10/100 Base-T, USB |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge energy rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
3.40 inches (86 mm) |
|
Maximum Width |
17.00 inches (432 mm) |
|
Maximum Depth |
26.70 inches (678 mm) |
|
Rack Height |
2U |
|
Net Weight |
103.00 lbs. (46.82 kg) |
|
Shipping Weight |
125.00 lbs. (56.82 kg) |
|
Shipping Height |
9.84 inches (250 mm) |
|
Shipping Width |
23.46 inches (596 mm) |
|
Shipping Depth |
38.58 inches (980 mm) |
|
Master Carton Units |
1.00 |
|
Color |
Black |
|
Units per Pallet |
10.00 |
Environmental:
|
Operating Environment |
32 - 104 °F (0 - 40 °C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0-10000 feet (0-3000 meters) |
|
Storage Temperature |
23 - 131 °F (-5 - 55 °C) |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0-30000 feet (0-9000 meters) |
|
Audible noise at 1 meter from surface of unit |
55.00 dBA |
|
Online Thermal Dissipation |
390.00 BTU/hr |
Additional Info
Additional Info
| Manufacturer | No |
|---|---|
| Form Factor | No |
| Waveform in Battery Mode | No |
| Input Voltage | No |
| Output (VA) | No |
| Output Voltage | No |
| PDU Total Outlets | N/A |
