41% Off

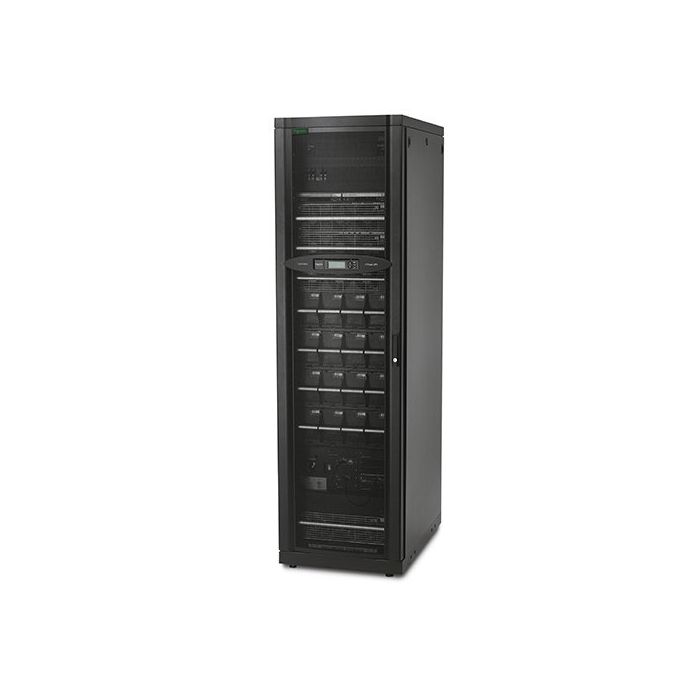

APC Symmetra PX InfraStruXure 20kW 208V ISX20K20F

APC Symmetra PX InfraStruXure 20kW 208V
Model: ISX20K20F

20 kW / 20 kVA
Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: $22,000.00

Now only: $12,999.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada

Description

Details

Manufacturer: APC
Model: APC Symmetra PX InfraStruXure 20kW 208V
Condition: Refurbished with New Batteries
Part Number: ISX20K20F
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The ISX20K20F is fully tested, refurbished, and comes with new batteries. The ISX20K20F is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

ISX20K20F Specifications

Output:

Output Power Capacity

20 kW / 20 kVA

Max Configurable Power

20 kW / 20 kVA

Nominal Output Voltage

120V, 208V, 208V 3PH

Output Voltage Note

Configurable for 208 or 240

nominal output voltage

Efficiency at Full Load

89.0%

Output Voltage Distortion

Less than 5%

Output Frequency

(sync to mains)

60 Hz - programmable +/- 0.5 /

1 / 2 / 4 / 6 / 8%

Crest Factor

2.5 : 1

Waveform Type

sinewave

Bypass

Built-in Maintenance Bypass,

Built-in Static Bypass


Input:

Nominal Input Voltage

208V 3PH

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

Hard Wire 5-wire (3PH + N + G)



Input voltage range for

main operations

177 - 240V


Batteries and Runtime:

Battery Type

Maintenance-free sealed

Lead-Acid battery with

suspended electrolyte :

leakproof

Included Battery Modules

2

Available Battery Module Slots

2

Typical recharge time

2 hour(s)

Replacement Battery

SYBT4

RBC Quantity

1

Extended Run Options

InfraStruXure20kW, 208V


Communications and Management:

Interface Port(s)

Smart-Slot

Available SmartSlot

Interface Quantity

2

Pre-Installed SmartSlot

Cards

AP9617

Control panel

Multi-function LCD status

and control console

Audible Alarm

Alarm when on battery :

distinctive low battery alarm :

configurable delays

Emergency Power

Off (EPO)

Yes


Physical:

Maximum Height

81.50 inches (2070 mm)

Maximum Width

24.00 inches (610 mm)

Maximum Depth

35.50 inches (902 mm)

Rack Height

42U

Net Weight

1803.00 lbs. (819.55 kg)

Shipping Weight

1853.00 lbs. (842.27 kg)

Shipping Height

91.00 inches (2311 mm)

Shipping Width

29.50 inches (749 mm)

Shipping Depth

41.50 inches (1054 mm)

Color

Black


Environmental:

Operating Environment

32 - 104 °F (0 - 40 °C)

Operating Relative Humidity

0 - 95%

Operating Elevation

0-10000 feet (0-3000 meters)

Storage Temperature

5 - 104 °F (-15 - 40 °C)

Storage Relative Humidity

0 - 95%

Storage Elevation

0-50000 feet (0-15000 meters)

Audible noise at 1 meter

from surface of unit

58.00 dBA

Online Thermal Dissipation

5942.00 BTU/hr

Additional Info

Additional Info

Input No
Output(VA) No
Type No
Output Voltage No
