Description
Details
Manufacturer: APC

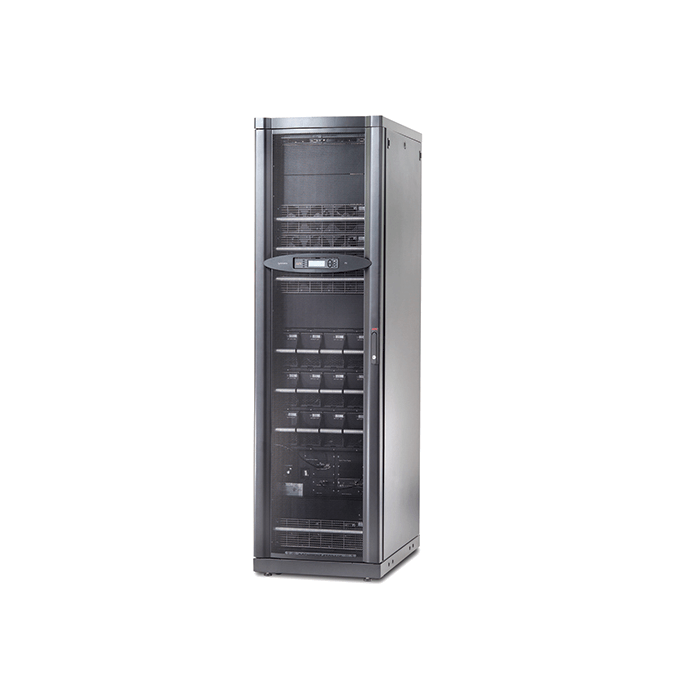

Model: APC Symmetra PX 30kW to Scalable to 40kW N+1
Condition: Refurbished with New Batteries
Part Number: SY30K40F
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The SY30K40F comes refurbished with new batteries. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SY30K40F - APC Symmetra PX 30kW Specifications:
Main:
Main Input Voltage |
208 V 3 phase |
Main Output Voltage |
120V |
Kw Rating |
30000W |
Rated Power in VA |
30000VA |
Output Connector Type |
Hard Wire 5-wire (3PH + N + G) 1 |
Number of Cables |
1 |
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
Included Battery Modules |
3 |
Battery Slots Empty |
1 |
Typical Recharge Time |
2 h |
Battery Charge Power (Watts) |
4126 W rated |
Extendable Run Time |
1 |
Replacement Battery |
SYBT4 |
General:
Number of Power Module |
5 |
Number Preinstalled Power Module |
3 |
Number of Power Module Free Slots |
2 |
Number of Power Module Filled Slots |
3 |
Redundant |
Yes |
Physical:
Color |
Black |
Height |
81.50 in (207 cm) |
Width |
23.62 in (60 cm) |
Depth |
35.51 in (90.2 cm) |
Net Weight |
1438.01 lb(US) (652.27 kg) |
USB Compatible |
No |
Input:
Input Frequency |
50/60 Hz
|
Number of Input Connectors |
1 Hard Wire 5-wire (3PH + N + G) |
Efficiency at Full Load |
177...240V |
Input Power Factor at Full Load |
0.99 |
Output:
Max Configurable Power (Watts) |
40000W
|
Harmonic Distortion |
Less than 5% |
Output Frequency (sync to mains) |
57...63 Hz for 60 Hz nominal sync to mains |
Topology |
Double Conversion Online |
Waveform Type |
Sine wave |
Bypass Type |
Built-in Static Bypass |
Maximum Output Current |
111 A |
Maximum Configurable Power in VA |
40000VA |
Conformance:
Product Certifications |
cUL Recognized
Eurobat General Purpose |
Standards |
CSA C22.2 No.107.3-05 |
Environmental:
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
Relative Humidity |
0…95% |
Operating Altitude |
0...10000 ft |
Ambient Air Temperature for Storage |
5…104 °F (-15…40 °C) |
Storage Relative Humidity |
0…95% |
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
Acoustic Level |
64 dBA |
Heat Dissipation |
8913 Btu/h |
NEMA Degree of Protection |
NEMA 1 |
Communications & Management:
Free Slots |
2
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 - Masterpack for Symmetra 3-Phase |
Control Panel |
Multi-function LCD status and control console |
Emergency Power Off (EPO) |
Yes |
Additional Info
Additional Info
Manufacturer | No |
---|---|
Form Factor | No |
Waveform in Battery Mode | No |
Input Voltage | 208V AC |
Output (VA) | No |
Output Voltage | 120V AC, 208V AC |
PDU Total Outlets | No |
