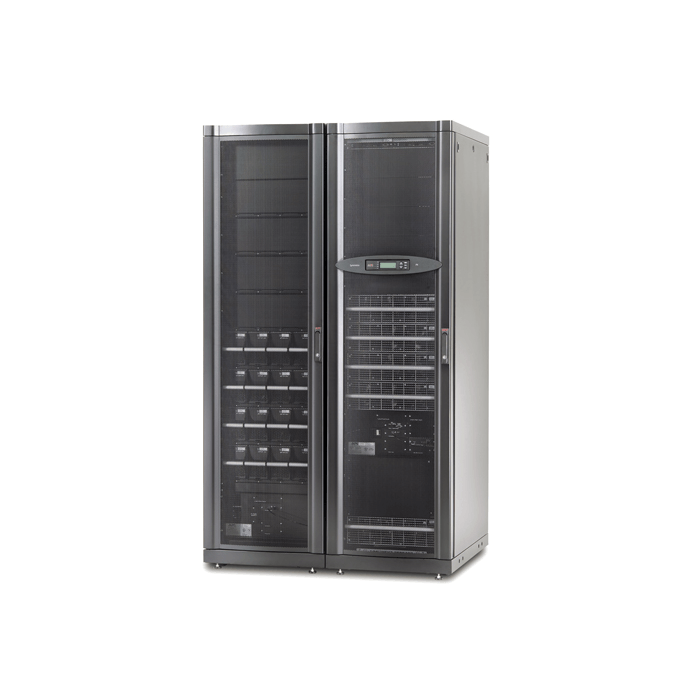

APC Symmetra PX 40kW Scalable to 80kW N+1 SY40K80F

APC Symmetra PX 40kW Scalable to 80kW N+1 (SY40K80F)
40 kW / 40 kVA
Output: (1) Hard Wire 5-wire (3PH + N + G), (1) Screw Terminals

Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: $44,589.99

Now only: $31,849.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada

Description

Details

Manufacturer: APC
Model: APC Symmetra PX 40kW Scalable to 80kW N+1
Condition: Refurbished with New Batteries
Part Number: SY40K80F
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The SY40K80F comes refurbished with new batteries. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

SY40K80F Specifications

Output:

Output Power Capacity

40 kW / 40 kVA

Max Configurable Power

40 kW / 40 kVA

Nominal Output Voltage

120V, 208V, 208V 3PH

Output Voltage Distortion

Less than 3%

Output Frequency

(sync to mains)

57 - 63 Hz for 60 Hz

nominal

Crest Factor

Unlimited

Topology

Double Conversion Online

Waveform Type

sinewave

Output Connections

(1) Hard Wire 5-wire (3PH + N + G)

(1) Screw Terminals

Bypass

Built-in Static Bypass


Input:

Nominal Input Voltage

208V 3PH

Input Frequency

50/60 Hz +/- 5 Hz

(auto sensing)

Input Connections

Hard Wire 5-wire

(3PH + N + G)



Input voltage range for

main operations

177 - 240V


Batteries and Runtime:

Battery Type

No internal battery -uses

external battery system

Included Battery Modules

4

Available Battery Module Slots

4

Typical recharge time

2 hour(s)

Replacement Battery

SYBT4


Communications and Management:

Interface Port(s)

SmartSlot

Available SmartSlot

Interface Quantity

2

Pre-Installed SmartSlot

Cards

AP9630

Control panel

Multi-function LCD status

and control console

Audible Alarm

Alarm when on battery :

distinctive low battery alarm :

configurable delays

Emergency Power

Off (EPO)

Yes


Physical:

Maximum Height

2070.00 mm

Maximum Width

1219.00 mm

Maximum Depth

902.00 mm

Rack Height

42U

Net Weight

1012.73 KG

Shipping Weight

1069.91 KG

Shipping Height

2311.00 mm

Shipping Width

1499.00 mm

Shipping Depth

1054.00 mm

Color

Black

Units per Pallet

1.00


Environmental:

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 40 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter

from surface of unit

64.00 dBA

Online Thermal Dissipation

11884.00 BTU/hr

Protection Class

NEMA 1

Additional Info

Additional Info

Input No
Output(VA) No
Type No
Output Voltage No
