APC Back UPS RS 1500
BR1500LCD
1500VA 865W
NEW
30 Day Money Back Guarantee!
3 Year Warranty
Manufacturer: APC
Model Description: APC Back-UPS RS 1500VA LCD
Condition: New & Fresh Stock
Part Number: BR1500LCD
Maximum output: 865 Watts / 1500 VA
Battery Protected Outlets: 6
Surge Protected Outlets: 2
Typical backup time at half load: 11.7 minutes (432.50 Watts)
Typical backup time at full load: 3.1 minutes (865 Watts)
Warranty: 30 Day Money Back Guarantee! 3 Year Warranty
Includes: CD with software, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
APC Back-UPS RS 1500 LCD Features:
- Battery failure notification
- Battery-protected and surge-only outlets
- Cold-start capable
- Serial Connectivity
- Hot-swappable batteries
- Disconnected battery notification
- Data line Surge Protection
- Automatic self-test
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Audible alarms
- User-replaceable batteries
- USB connectivity
- Serial Connectivity
- Transformer-block spaced outlets
- Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Safety-agency approved
- Lifetime data recovery warranty
- Adjustable voltage sensitivity
- Battery replacement without tools
- LED status indicators
APC Back UPS RS 1500VA BR1500LCD User's Manual
APC Back-UPS RS 1500VA BR1500LCD Specifications:
Output:
|
Output power capacity |
865 Watts / 1500 VA |
|
Max Configurable Power |
865 Watts / 1500 VA |
|
Nominal output voltage |
120V |
| Output Frequency (sync to mains |
60 Hz |
|
Waveform type |
Stepped Approximation to Sinewave |
| Crest Factor |
3: 1 |
|

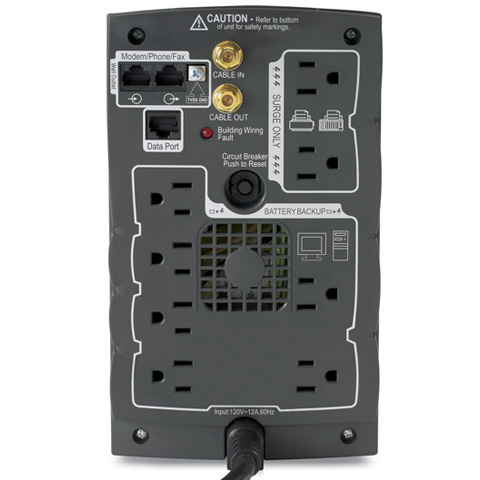

Output Connections |
|
(6) NEMA 5-15R (Battery Backup) |
|
| (2) NEMA 5-15R (Surge Protection) |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
60 Hz +/- 3 Hz |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet (1.83 meters) |
|
Input voltage range for main operations |
88 - 139V |
| Maximum Input Current |
15A |
| Input Breaker Capacity |
12A |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leak proof |
| Typical Recharge Time |
16 hours |
| Replacement Battery |
RBC109 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
11.7 minutes (432.50 Watts) |
|
Typical backup time at full load |
3.1 minutes (865 Watts) |
Communications and Management:
| Interface Port |
USB |
|
Control panel |
Multi-function LCD status and control console |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge:
|
Surge energy rating |
340 Joules |
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Data Line Protection |
RJ-45 Modem/Fax/DSL/10-100 Base-T protection,Co-axial Video / Cable protection |
Physical:
|
Maximum height |
8.75 inches (222 mm) |
|
Maximum width |
5.25 inches (133 mm) |
|
Maximum depth |
14.0 inches (356 mm) |
|
Net weight |
30.00 lbs. (11.36 kg) |
| Shipping weight |
34.22lbs (15.55 kg) |
|
