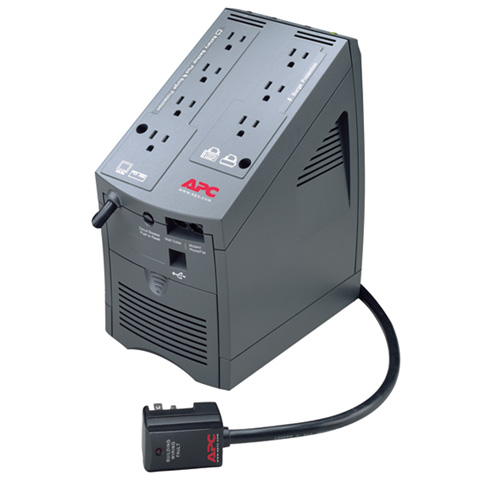

APC Back UPS LS 700
BP700UC 700VA 410W
NEW
30 Day Money Back Guarantee!
3 Year Warranty
Manufacturer: APC
Model Description: APC Back-UPS LS 700
Condition: New & Fresh Stock
Part Number: BP700UC
Maximum output: 410 Watts / 700 VA
Battery Protected Outlets: 4
Surge Protected Outlets: 3
Typical backup time at half load: 13.8 minutes (205 Watts)
Typical backup time at full load: 4.5 minutes (410 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 30 Day Money Back Guarantee! 3 Year Warranty
Includes: CD with software, Cord management straps, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
Back-UPS LS 700 Features:
- Battery-protected and surge-only outlets
- Boost Automatic Voltage Regulation (AVR)
- Data line surge protection
- Lifetime data recovery warranty
- Safety-agency approved
- Power conditioning
-
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery replacement without tools
- Cold-start capable
- LED status indicators
- Hot-swappable batteries
- Resettable circuit breakers
- Transformer-block spaced outlets
- User-replaceable batteries
- USB Connectivity
- Intelligent battery management
APC Back UPS LS 700 BP700UC User's Manual
APC Back-UPS LS 700 BP700UC Specifications:
Output:
|
Output power capacity |
410 Watts / 700 VA |
|
Max Configurable Power |
410 Watts / 700 VA |
|
Nominal output voltage |
120V |
|
Waveform type |
Stepped Approximation to Sinewave |
|
Output Connections |
|
(4) NEMA 5-15R (Battery Backup) |
|
| (3) NEMA 5-15R (Surge Protection) |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz Auto Sensing |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet (1.83 meters) |
|
Input voltage range for main operations |
82 - 144 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical Recharge Time |
10 hours |
| Replacement Battery |
RBC17 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
13.8 minutes (205 Watts) |
|
Typical backup time at full load |
4.5 minutes (410 Watts) |
Communications and Management:
| Interface Port(s) |
USB |
|
Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge:
|
Surge energy rating |
510 Joules |
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Data Line Protection |
RJ-11 Modem/Fax/DSL protection (four wire dual line) |
Physical:
|
Maximum height |
9.40 inches (239 mm) |
|
Maximum width |
5.00 inches (127 mm) |
|
Maximum depth |
7.90 inches (201 mm) |
|
Net weight |
17.00 lbs. (7.74 kg) |
|
Shipping Weight |
19.00 lbs. (8.64 kg) |
|
