APC Back UPS RS 1300VA LCD
BR1300LCD
1300VA 780W
NEW
30 Day Money Back Guarantee!
3 Year Warranty
A new and improved edition of this product is available, check out the Back-UPS Pro 1300 BR1300G.
Manufacturer: APC
Model Description: APC Back-UPS RS 1300
Condition: New & Fresh Stock
Part Number: BR1300LCD
Maximum output: 780 Watts / 1300 VA
Battery Protected Outlets: 6
Surge Protected Outlets: 2
Typical backup time at half load: 16.4 minutes (390 Watts)
Typical backup time at full load: 5.4 minutes (780 Watts)
Warranty: 30 Day Money Back Guarantee! 3 Year Warranty
Includes: CD with software, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
APC Back-UPS RS 1300 Features:
- Battery failure notification
- Battery-protected and surge-only outlets
- Cold-start capable
- Hot-swappable batteries
- Disconnected battery notification
- Dataline Surge Protection
- Boost Automatic Voltage Regulation (AVR)
- Automatic self-test
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Audible alarms
- User-replaceable batteries
- USB connectivity
- Transformer-block spaced outlets
- Intelligent battery management
- Safety-agency approved
- Lifetime data recovery warranty
- Adjustable voltage sensitivity
- Battery replacement without tools
- LCD graphics display
APC Back UPS RS 1300 BR1300LCD User's Manual
APC Back-UPS RS 1300 BR1300LCD Specifications:
Output:
|
Output power capacity |
780 Watts / 1200 VA |
|
Max Configurable Power |
780 Watts / 1200 VA |
|
Nominal output voltage |
120V |
| Output Frequency (sync to mains |
60 Hz |
|
Waveform type |
Stepped Approximation to Sinewave |
| Crest Factor |
3: 1 |
|

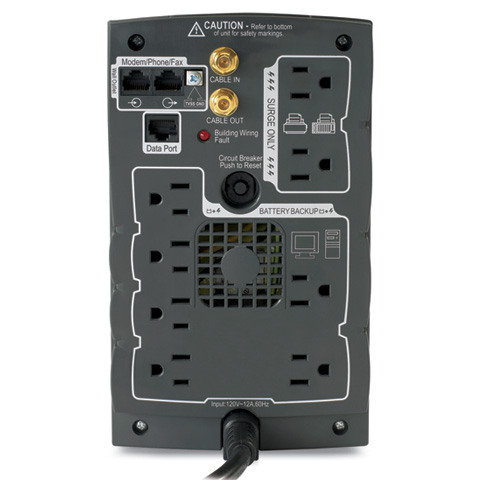

Output Connections |
|
(6) NEMA 5-15R (Battery Backup) |
|
| (2) NEMA 5-15R (Surge Protection) |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
60 Hz +/- 3 Hz |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet (1.83 meters) |
|
Input voltage range for main operations |
88 - 139 V |
| Maximum Input Current |
12A |
| Input Breaker Capacity |
15A |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical Recharge Time |
16 hours |
| Replacement Battery |
RBC109 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
16.4 minutes (390 Watts) |
|
Typical backup time at full load |
5.4 minutes (780 Watts) |
Communications and Management:
|
Control panel |
Multi-function LCD status and control console |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge:
|
Surge energy rating |
340 Joules |
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Data Line Protection |
RJ-45 Modem/Fax/DSL/10-100 Base-T protection, Co-axial Video / Cable protection |
Physical:
|
Maximum height |
8.75 inches (222 mm) |
|
Maximum width |
5.25 inches (133 mm) |
|
Maximum depth |
14.00 inches (356 mm) |
|
Net weight |
29.70 lbs. (13.50 kg) |
|
Shipping Weight |
30.70 lbs. (13.95 kg) |
|
