APC Back-UPS CS 500 BK500
[BK500]
$105.99

 APC Back UPS CS 500
6 Outlet BK500 500VA 300W BLACK
NEW


30 Day Money Back Guarantee!
3 Year Warranty


Manufacturer: APC
Model Description: APC Back-UPS CS 500 BLACK

Condition: New & Fresh Stock
Part Number: BK500
Maximum output:
300 Watts / 500 VA
Battery Protected Outlets: 3
Surge Protected Outlets: 3
Typical backup time
at half load: 15.4 minutes (150 Watts)
Typical backup time at full load:
3.4 minutes (300 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 30 Day Money Back Guarantee! 3 Year Warranty



The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices


Back-UPS CS 500 Features:

  • Battery failure notification
  • Battery-protected and surge-only outlets
  • Cold-start capable
  • Serial Connectivity
  • Hot-swappable batteries
  • Disconnected battery notification
  • Data line Surge Protection
  • Automatic self-test
  • Audible Alarms
  • User-replaceable batteries
  • USB Connectivity
  • Transformer-block spaced outlets
  • Intelligent Battery Management
  • Safety-agency approved
  • Lifetime data recovery warranty
  • Battery replacement without tools
  • LED status indicators


 APC Back UPS CS 500 BK500 BLACK User's Manual


APC Back-UPS CS 500 CS500 Specifications:

Output:

Output power capacity

300 Watts / 500 VA

Max Configurable Power

300 Watts / 500 VA

Nominal output voltage

120V

Output Frequency (sync to mains)

50/60 Hz + / - 3 Hz Auto Sensing

Waveform type

Stepped Approximation to Sinewave

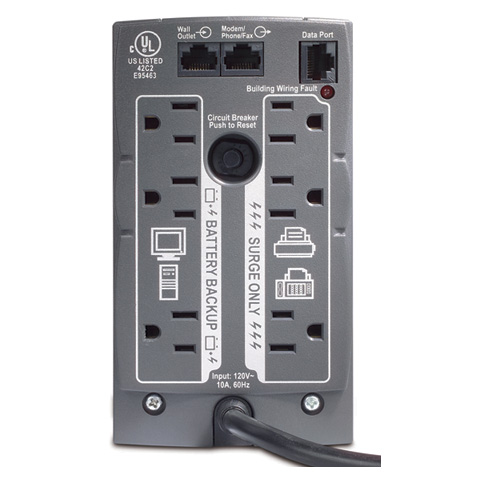

Output Connections

(3) NEMA 5-15R (Battery Backup)

(3) NEMA 5-15R (Surge Protection)

Input:

Nominal input voltage

120V

Input frequency

50/60 Hz +/- 3 Hz Auto Sensing

Input Connection Type

NEMA 5-15P

Cord Length

6 feet (1.83 meters)

Input voltage range for main operations

98 - 140 V

Batteries and Runtime:

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical Recharge Time 8 hours
Replacement Battery RBC2

RBC™ Quantity

1

Typical backup time at half load

15.4 minutes (150 Watts)

Typical backup time at full load

3.4 minutes (300 Watts)

Communications and Management:

Interface Port(s) DB-9 RS-232, USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge:

Surge energy rating

480 Joules

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Data Line Protection RJ-11 Modem/Fax/DSL protection (two wire single line)

Physical:

Maximum height

6.50 inches (165 mm)

Maximum width

3.60 inches (91 mm)

Maximum depth

11.20 inches (284 mm)

Net weight

13.80 lbs. (5.68 kg)

Shipping Weight

15.30 lbs. (6.36 kg)

APC Back-UPS CS 500 BK500
This product was added to our catalog on Monday 13 April, 2009.
