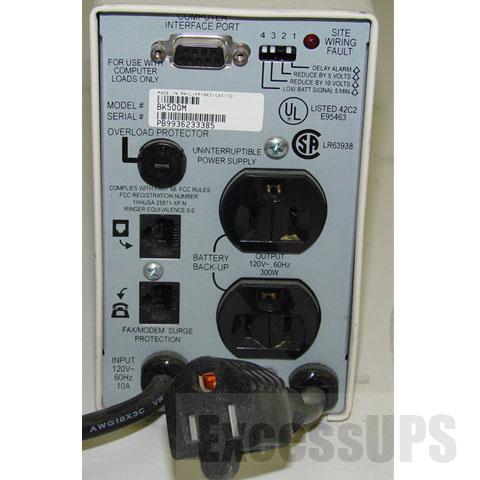

APC BACK-UPS 500
500VA 300W BK500M
Refurbished with Brand New Batteries

At ExcessUPS we specialize in APC power protection products. We professionally refurbish and thoroughly test each and every APC UPS. Every refurbished APC battery backup UPS has brand new high quality batteries installed that meet or exceed APC’s specifications. We install only high quality long life batteries in every uninterruptible power supply, providing reliable and dependable power protection.



Output



Output Power Capacity	300 Watts / 500 VA
Max Configurable Power	300 Watts / 500 VA
Nominal Output Voltage	120V
Output Connections	(1)    NEMA 5-15R (Surge Protection) (2)    NEMA 5-15R (Battery Backup)



Input

Nominal Input Voltage	120V
Input Frequency	60 Hz +/- 3 Hz
Input Connections	NEMA 5-15P
Cord Length	2 meters
Input voltage range for main operations	103 -150V
Input voltage adjustable range for mains operation	88 -150V



Batteries & Runtime

Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time	7 hour(s)
Replacement battery cartridge	RBC2
RBC™ Quantity	1
Typical Backup Time at Half Load	12.4 minutes (150 Watts)
Typical Backup Time at Full Load	5.5 minutes (300 Watts)
Runtime Chart	Back-UPS



Communications & Management

Interface Port(s)	DB-9 RS-232
Control panel	Output power on indicator LED
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays



Surge Protection and Filtering

Surge energy rating	320 Joules
Filtering	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection	RJ-45 Modem/Fax protection (two wire single line)



Physical

Maximum Height	152.00 mm
Maximum Width	86.00 mm
Maximum depth	333.00 mm
Net Weight	7.05 KG
Shipping Weight	8.95 KG
