Description
Details

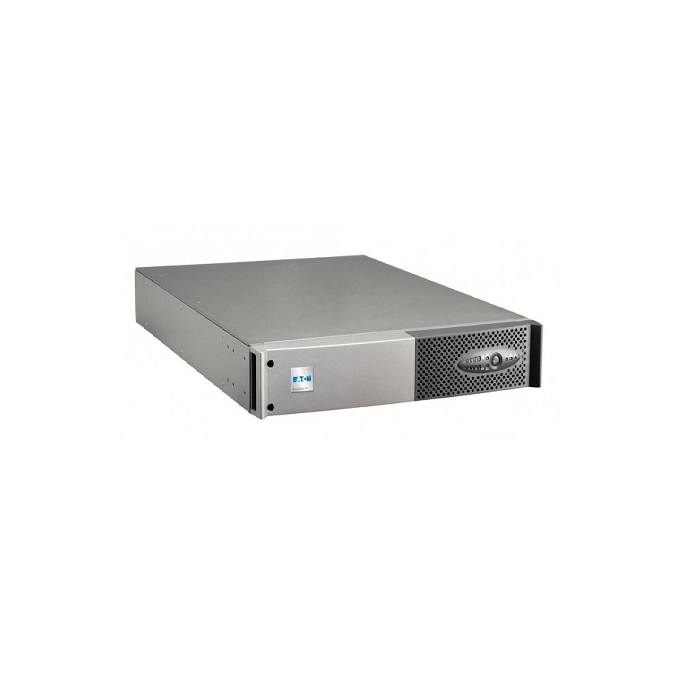

Manufacturer: Eaton MGE Evolution S 2500VA 2U Rack/Tower UPS
Model: 68461
Condition: Refurbished with New Batteries
Part Number: 68461
Warranty: 1 Year Extended Warranty, additional warranty available
The 68461 comes refurbished with new batteries. The Eaton MGE Evolution comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
68461 Specifications:
General |
|
Topology |
Line-Interactive High Frequency (Booster + Fader) |
Configuration |
Rack/Tower |
Style Number |
68461 |
Part Number |
68461 |
Color |
charcoal grey and metallic grey combo |
Rating (VA/Watts) |
2500/2250 |
Diagnostics |
Auto Teste de todo o sistema |
Efficiency |
0.94 |
Dimensions (H x W x D, mm) |
86.2 x 440 x 634 (RT2U) |
Weight |
33.8kg / 74.51lbs |
Rail Kit Included |
Yes |
Remote Emergency Power off (REPO) |
Sim |
Electrical Input |
|
Connection |
(1) IEC-320-C20
|
Input Cord |
Cabo de alimentação com Plug IEC 320 C20 |
Input Voltage Range |
160V ~ 294V |
Input Voltage Without Using Batteries |
160V - 294V (adjustable to 150 - 294V) |
Nominal Voltage |
230 VAC |
Voltage Range |
200/208/220/230/240V |
Frequency |
50/60 Hz |
Operating Frequency |
60Hz |
Input frequency Range Without Using Batteries |
47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), up to 40 Hz in low-sensitivity mode (programmable using Personal Solution-Pac software |
Frequency Range |
56.5-70Hz |
Electrical Output |
|
Voltages |
230 V (+6/-10%) - Adjustable to 200 V (10% derating of output power) / 208 V / 220 V / 230 V / 240 V |
Nominal Voltage |
200/208/220/230/240V |
Voltage Range |
200/208/220/230/240V |
Output voltage regulation |
±4% |
Output Receptacles |
(8) IEC-320-C13
(1) IEC-320-C19
|
Remotely controlled sockets |
2 groups of 2 x IEC C13 (10 A) |
On Utility Voltage Regulation |
±4% da tensão nominal |
On Battery Voltage Regulation |
+6% / -10% |
Power Factor |
0.9 |
Output Frequency |
50 / 60Hz |
Frequency Regulation |
±2% |
Transfer Time |
0.6 a 4ms |
Load Crest Factor |
3:1 |
Load Segments |
Duas Configuráveis, tomadas individuais controlados |
Battery |
|
Battery Description |
VRLA 12V/7 Ah |
Maximum number of extended battery modules (EBM) |
4 |
Battery Management |
Automatic weekly test (period adjustable), automatic recognition of external battery units => continuous maximisation of backup time + deep discharge protection |
Battery Type |
Maintenance-free, sealed Lead-Acid battery |
Hot-swappable Batteries |
Sim |
Battery Replacement |
Hot-swapp |
Extended Battery Capability |
Sim - até 4 Módulos |
Start On Battery |
Sim - permite DC Start |
Recharge Time |
8 a 10 Horas (90% de carga) |
Communications |
|
User Interface |
Led's |
LEDs |
13 Led's Indicativos |
Communication Ports |
1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off |
Relay Output |
Sim |
Communications Slot |
Sim - 1 Slot |
Communications Card Slots |
1 slot for NMC Minislot card or NMC ModBus/JBus or MC Contacts/Serial |
Power Management Software |
Software de Gerenciamento de Energia - Personal Solution Pac |
Environmental and Standards |
|
Audible Noise |
< 50 dBA |
Operating Temperature |
0 to 40 °C |
Performance - Safety - EMC |
IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 EN 50091-2 class B (EMC), IEC/EN 62040-3 (Performance),IEC/EN 61000-4-2, 61000-4-3, 61000-4-4; 61000-4-5, 61000-4-6, 61000-4-8 (EMI) |
Approvals |
CE, CB report , TÜV |
Storage Temperature |
-20°C a +50°C |
Relative Humidity |
20-95% não condensada |
Altitude |
≤1000m |
Additional Info
Additional Info
Manufacturer | Eaton Powerware |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | No |
Output (VA) | No |
Output Voltage | No |
PDU Total Outlets | N/A |
