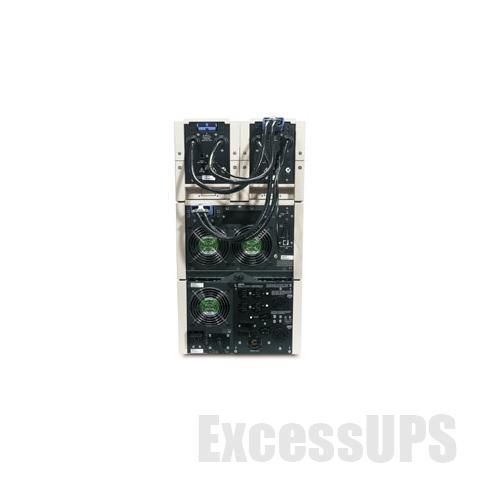

APC MATRIX 5000 5KVA 5000VA MX5000 208V
with 2 APC SMARTCELL Battery Packs
Refurbished, with Brand New Batteries

The APC Matrix 5000 has been professionally tested and refurbished. This APC Matrix 5000 comes with 2 SmartCells with brand new batteries installed. The unit is in excellent condition with minor scratches from storage and movement. The unit is 100% functional and comes with a 1 year warranty.

The APC Matrix 5000 has an input of 208V NEMA L6-30P and needs a dedicated 208V 30A power line. Please speak with your site manager or electrician to ensure that you have this power available to you.

The APC Matrix 5000 is an excellent industrial unit, a work horse providing 3750W / 5000VA of power. The Matrix 5000 comes standard with two SmartCell Battery Packs. If more runtime is needed, up to 10 SmartCells can be attached in a cascading order to the Matrix. If even more runtime is required a SmartCell XR battery pack can be purchased which contains huge batteries and offers a significantly longer runtime.

Typical runtime with two APC SmartCells:

If you need a custom configuration of the APC Matrix 5000 with more battery packs please contact us.

APC Matrix 5000 MX5000 User's Manual

APC Matrix 5000 MX5000 Features:

• Adjustable voltage-transfer points
• Audible alarms
• Automatic internal bypass
• Automatic restart of loads after UPS shutdown
• Automatic self-test
• Battery modules connected in parallel
• Boost and Trim Automatic Voltage Regulation (AVR)
• Field-replaceable power distribution panel
• Hot-swappable batteries
• Hot-swappable modules
• InfraStruXure Manager compatible
• Intelligent battery management
• LCD display
• Manageable external batteries
• Modular design
• Plug-and-Play external batteries
• Power conditioning
• Predictive failure notification
• Scalable runtime
• Serial Connectivity
• SmartSlot
• User-replaceable batteries
• User-replaceable power modules



Output:

Output power capacity	3750 Watts / 5000 VA
Max Configurable Power	3750 Watts / 5000 VA
Nominal output voltage	120V,208V
Efficiency at Full Load	93.00%
Output Voltage Distortion	less than 5% at full load
Output Frequency (sync to mains)	57 - 63 Hz for 60 Hz nominal
Crest Factor	up to 5 : 1
Waveform type	Sinewave
Output Connections	(6) NEMA 5-15R (1) NEMA L14-30R (2) NEMA L6-30R

Input:

Bypass	Internal Bypass (Automatic and Manual)
Nominal input voltage	208V
Input frequency	60 Hz +/- 5 Hz
Input Connection Type	NEMA L6-30P
Cord Length	6 feet ( 1.83 meters )
Input voltage range for main operations	156 - 252 (208) / 176 - 282 ( 240V)V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	The MX5000 ships with 2-SmartCell's. There is no RBC available for a standard SmartCell.
RBC™ Quantity	2
Typical backup time at half load	27.8 minutes (1875 Watts)
Typical backup time at full load	10.2 minutes (3750 Watts)
Runtime Chart	Matrix-UPS

Communications and Management:

Interface port	DB-9 RS-232,SmartSlot
Available Smart Slot Interface Quantity	1
Control panel	Multi-function LCD status and control console
Audible alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Yes

Physical:

Maximum height	683.00 mm
Maximum width	351.00 mm
Maximum depth	452.00 mm
Net weight	137.73 KG
Shipping Weight	160.00 KG
Color	Beige
