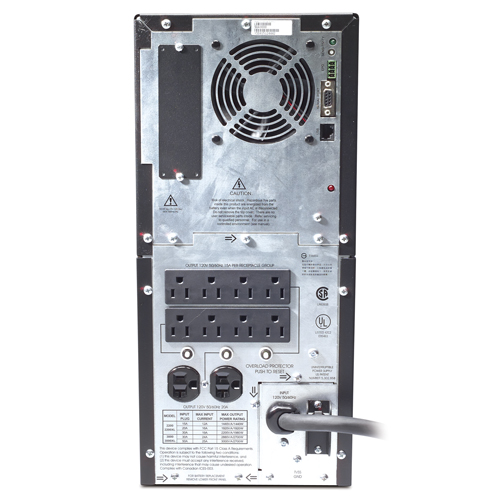

APC Smart-UPS 3000
3000VA 2700W SUA3000 USB & Serial 120V
Refurbished with New Batteries
1 Year Full Replacement Warranty
Manufacturer: APC
Model Description: APC Smart UPS 3000 3000VA 2700W SUA3000 USB & Serial 120V
Condition: Refurbished with Brand New Batteries
Part Number: SUA3000
Maximum output: 2700W / 3000 VA
Typical backup time at half load: 24.1 minutes (990 Watts)
Typical backup time at full load: 6.7 minutes (1980 Watts)
Output Waveform: Sinewave
Warranty: 1 Year Full Replacement Warranty
APC Smart-UPS 3000 Tower SUA3000 User's Manual
A serial communications cable (940-0024C) is included with this item. It will give you greater control and customization options for this UPS. APC's PowerChute software, available free of charge on APC's website, provides extended features and abilities to enhance the effectiveness and usefulness of this UPS.
APC PowerChute Business Edition Basic v 7.0.5
Output:
|
Output power capacity |
2700 Watts / 3000 VA |
|
Max Configurable Power |
1980 Watts / 2200 VA |
|
Nominal output voltage |
120V |
|
Efficiency at Full Load |
95.00% |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
| Output Connections |
|
(8) NEMA 5-15R |
|
| (2) NEMA 5-20R |
 | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA L5-30P |
 | |
|
Cord Length |
6 feet ( 1.83 meters ) |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC55 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
13.6 minutes (1350 Watts) |
|
Typical backup time
at full load |
5.5 minutes (2700 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
432.00 mm |
|
Maximum width |
196.00 mm |
|
Maximum depth |
546.00 mm |
|
Net weight |
50.91 KG |
|
Shipping Weight |
62.00 KG |
|
