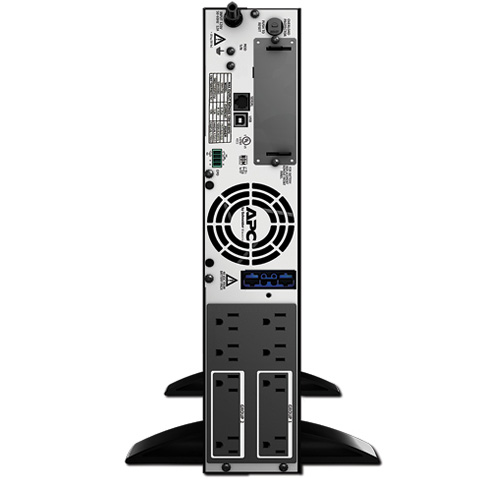

APC Smart UPS X 1000VA Rack/Tower LCD 120V SMX1000
800W / 1000VA
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty
The APC Smart-UPS X 1000VA is APC's new extended run time model. This is the newer version of the older XL units that allowed external battery packs to be added for extra run time. The SMX1000 functions very much the same way. Additional battery packs (pn: SMX48RMBP2U) can be added to increase the run time. For example, with a load of 100W the SMX1000 will provide 134 minutes of run time. The same 100W load on the SMX1000 with a SMX48RMBP2U will provide a run time of 502 minutes. A significant increase in run time.
Manufacturer: APC
Model: APC Smart-UPS X 1000VA Rack/Tower LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMX1000
Maximum output: 800 Watts / 1000 VA
Battery Protected Outlets: 8
Typical backup time at half load: 24.2 minutes (400 Watts)
Typical backup time at full load: 8.1 minutes (800 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
A brief summary of features for the APC Smart-UPS X 1000 1000VA SMX1000:
-
Adjustable voltage sensitivity
-
Adjustable voltage-transfer points
-
Audible alarms
-
Auto recognition of external batteries
-
Automatic restart of loads after UPS shutdown
-
Energy meter
-
Battery failure notification
-
Boost and Trim Automatic Voltage Regulation (AVR)
-
Cold-start capable
-
Disconnected battery notification
-
Energy meter
-
Green mode
-
High frequency design
-
High online efficiency
-
Hot-swappable batteries
-
Intelligent battery management
-
Intuitive LCD interface
-
Multiple mounting methods
-
Multiple switched outlet groups
-
Network manageable
-
Plug-and-Play external batteries
-
Power conditioning
-
Predictive replace battery date
-
Pure sine wave output on battery
-
Rack/Tower convertible
-
Safety-agency approved
-
Scalable runtime
-
Serial Connectivity
-
SmartSlot
-
Temperature-compensated battery charging
-
Transformer-block spaced outlets
-
USB connectivity
-
User-replaceable batteries
APC Smart-UPS X 1000VA LCD SMX1000 Manual
Specifications for the APC Smart UPS X 1000VA:
Output:
|
Output power capacity |
800 Watts / 1000 VA |
|
Max Configurable Power |
800 Watts / 1000 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-63Hz |
|
Crest Factor |
up to 3 : 1 |
|
Waveform type |
Sine wave |
|
Output Connections |
|
(8) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
8 feet (2.44 meters) |
|
Input voltage range for main operations |
82 - 143 V |
|
Maximum Input Current |
12A |
| Input Breaker Capacity |
15A |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
24.2 minutes (400 Watts) |
|
Typical backup time at full load |
8.1 minutes (800 Watts) |
Communications and Management:
|
Interface port |
RJ45 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
Multi-function LCD status and control console |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge:
|
Surge energy rating |
600 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
17.00 inches (432 mm) |
|
Maximum width |
3.50 inches (89 mm) |
|
Maximum depth |
19.30 inches (490 mm) |
|
Net weight |
50.30 lbs. (22.86 kg) |
|
Shipping Weight |
60.10 lbs. (27.32 kg) |
| Rack Height |
2U |
|
