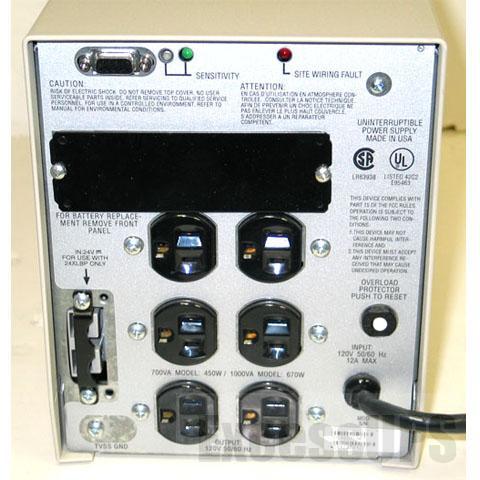

APC SMART-UPS XL 1000
1000VA 670W SU1000XLNET
Refurbished with New Batteries
Extended Runtime Model
Manufacturer: APC
Model: APC Smart-UPS 1000XL 1000VA 120V - Extended Runtime Model
Condition: Refurbished with Brand New Batteries
Part Number: SU1000XLNET
Maximum output: 670 Watts / 1000 VA
Battery Protected Outlets: 6
Typical backup time at half load: 43.4 minutes (335 Watts)
Typical backup time at full load: 13.5 minutes (670 Watts)
Output Waveform: Sinewave
Warranty: 1 Year Full Replacement Warranty
The APC Smart-UPS 1000XL is an extended runtime model. It is able to have battery packs added to it to provide an extended runtime. It is modular, and can be expanded as the need arises. Please click on this link to open the extended runtime option window. In this window you can see the effect a load will have on the UPS with any number of battery packs.
The APC Smart-UPS 1000XL can have a maximum of 4 SU24XLBP external battery packs attached to it. The Smart-UPS 1000XL with a 100W load would provide a runtime of 2 hours and 52 minutes. With one external battery pack and a 100W load, the runtime would be 9 hours and 45 minutes. With four external battery packs attached, a runtime of 30 hours and 28 minutes would be possible.
APC Smart-UPS 1000XL SU1000XLNET User’s Manual
A serial communications cable (940-0024C) is included with this item. It will give you greater control and customization options for this UPS. APC's PowerChute software, available free of charge on APC's website, provides extended features and abilities to enhance the effectiveness and usefulness of this UPS.
APC PowerChute Business Edition Basic v 7.0.5
A brief summary of features for the APC Smart-UPS 1000XL 1000VA SU1000XLNET UPS:
- Adjustable voltage sensitivity
- Adjustable voltage-transfer points
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Disconnected battery notification
- Extended runtime option
- Front-access servicing
- Generator compatible
- Hot-swappable batteries
- Intelligent battery management
- LED status indicators
- Network manageable
- Power conditioning
- Predictive failure notification
- Resettable circuit breakers
- Safety-agency approved
- Serial Connectivity
- SmartSlot
- User-replaceable batteries
Output:
|
Output Power Capacity |
670 Watts / 1000 VA |
|
Max Configurable Power |
670 Watts / 1000 VA |
|
Nominal Output Voltage |
120V |
|
Output Voltage Distortion |
Less than 5% at full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform Type |
Sine wave |
|
Output Connections |
|
(6) NEMA 5-15R |
| |
Input:
|
Nominal Input Voltage |
120V |
|
Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connections |
|
NEMA 5-15P |
| |
|
Input voltage range for main operations |
92 - 147V |
|
Input voltage adjustable range for mains operation |
86 - 154V |
Batteries and Runtime:
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC7 |
|
RBC™ Quantity |
1 |
|
Typical Backup Time
at Half Load |
43.4 minutes (335 Watts) |
|
Typical Backup Time
at Full Load |
13.5 minutes (670 Watts) |
|
Runtime Chart |
Smart-UPS XL |
Communications and Management:
|
Interface Port(s) |
DB-9 RS-232,SmartSlot |
|
Available SmartSlot™ Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
320 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
8.50 inches (216 mm) |
|
Maximum Width |
6.70 inches (170 mm) |
|
Maximum depth |
17.30 inches (439 mm) |
|
Net Weight |
60.00 lbs. ( 27.27 kg) |
|
Shipping Weight |
65.00 lbs. ( 29.55 kg) |
|
Shipping Height |
15.25 inches (387 mm) |
|
Shipping Width |
12.60 inches (320 mm) |
|
Shipping Depth |
23.25 inches (591 mm) |
