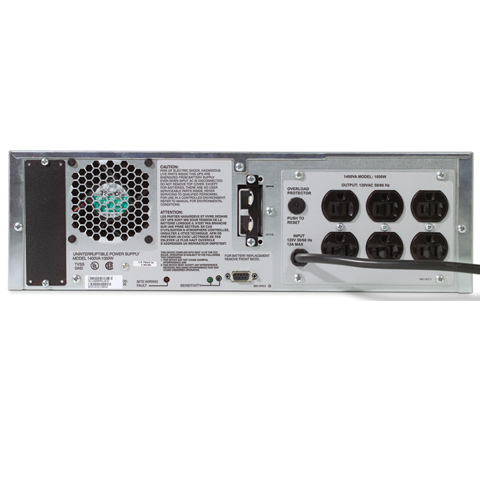

APC SMART UPS XL 1400 Rack mount 3U Black
1400VA 1050W
Model: SU1400RMXLB3U
Refurbished with New Batteries
30 Day Money Back Guarantee (includes shipping!)
1 Year Full Replacement Warranty
100% Satisfaction Guaranteed!
Manufacturer: APC
Model: APC Smart-UPS 1400VA XL 3U BLACK
Condition: Refurbished with New Batteries
Part Number: SU1400RMXLB3U
Maximum output: 1050 Watts / 1400 VA
Battery Protected Outlets: 6
Typical backup time at half load: 23.5 minutes (525 Watts)
Typical backup time at full load: 6.6 minutes (1050 Watts)
Warranty: 1 Year Full Replacement warranty. 30 Day Full Money Back Guarantee
Includes: SU1400RMXLB3U, rackmount ears, and communications cable
APC Smart-UPS 1400 XL RM 3U Black User's Manual
The APC Smart-UPS 1400 XL rack mount 3U is an extended runtime model. This UPS can have external battery packs attached to allow for a significant increase in runtime. It is a modular UPS providing the ability to expand as the need arises.
For example, the SU1400RMXL3U with a load of 100W will provide a runtime of approximately 2hrs and 19minutes. Once a SU24RMXLBP2U battery pack is attached, the runtime available becomes approximately 7hrs and 50minutes. If two battery packs are attached, the runtime becomes approximately 13hrs and 40minutes. Each battery pack attached provides a significant increase in runtime available on the UPS. If you have a particular run time requirement or have any questions about this call us or email us right away.
Output:
|
Output power capacity |
1050 Watts / 1400 VA |
|
Max Configurable Power |
1050 Watts / 1400 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(6) NEMA 5-15R |
| | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
1.83 meters |
|
Input voltage range for main operations |
92 - 147 V |
|
Input voltage adjustable range for mains operation |
86 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC25 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
23.5 minutes (525 Watts) |
|
Typical backup time at full load |
6.6 minutes (1050 Watts) |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
800 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
5.12 inches (130 mm) |
|
Maximum width |
17.00 inches (432 mm) |
|
Maximum depth |
15.50 inches (394 mm) |
|
Rack Height |
3 U |
|
Net weight |
70.00 lbs. (31.82 kg) |
|
Shipping Weight |
85.00 lbs. (38.64 kg) |
|
