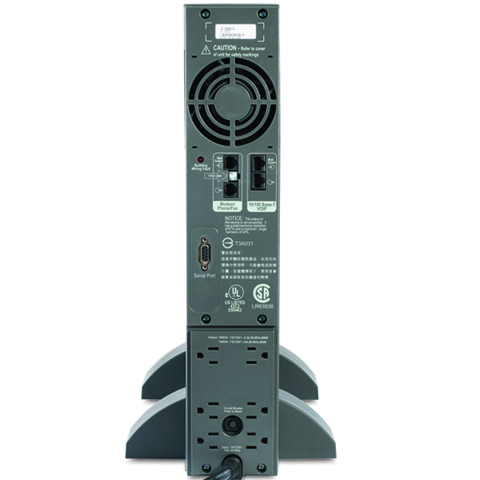

APC Smart UPS SC 1500
1500VA 865W 1440VA
SC1500 Rackmount/Tower
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
2 Year Warranty
Manufacturer: APC
Model Description: APC Smart-UPS SC 1500 Tower/Rackmount Convertible. 1440VA 865W 120V
Condition: Brand New & Fresh Stock
Part Number: SC1500
Maximum output: 865 W / 1440 VA
Typical backup time at half load: 20.9 minutes (432.5 Watts)
Typical backup time at full load: 7.6 minutes (865 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 2 Year Full Replacement Warranty
Includes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signaling RS-232 cable, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
A brief summary of features for the APC Smart-UPS SC1500:
|
· Adjustable voltage-transfer points |
|
· Audible alarms |
|
· Automatic restart of loads after UPS shutdown |
|
· Automatic self-test |
|
· Battery failure notification |
|
· Boost and Trim Automatic Voltage Regulation (AVR) |
|
· Cold-start capable |
|
· Data line Surge Protection |
|
· Front-access servicing |
|
· Hot-swappable batteries |
|
· InfraStruXure Manager Compatible |
|
· Intelligent battery management |
|
· LED status indicators |
|
· Network manageable |
|
· Power Conditioning |
|
· Rack/Tower convertible |
|
· Resettable circuit breakers |
|
· Safety-agency approved |
|
· Serial Connectivity |
|
· USB connectivity |
APC Smart-UPS SC 1500 SC1500 User's Manual
Detailed specifications for the APC Smart UPS SC 1500:
Output:
|
Output power capacity |
865 Watts / 1440 VA |
|
Max Configurable Power |
865 Watts / 1440 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Stepped approximation to Sinewave |
| Output Connections |
|
(6) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
47 - 63 Hz |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet ( 1.83 meters ) |
|
Input voltage range for main operations |
95 - 142V |
|
Input voltage adjustable range for mains operation |
87 - 152V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC59 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
20.9 minutes (432.50 Watts) |
|
Typical backup time
at full load |
7.6 minutes (865 Watts) |
|
Runtime Chart |
Smart-UPS SC |
Communications and Management:
|
Interface port |
DB-9 RS-232 , USB |
|
Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
N/A |
Surge:
|
Surge energy rating |
445 Joules |
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
3.50 inches (89 mm) |
|
Maximum width |
17.00 inches (432 mm) |
|
Maximum depth |
18.24 inches (463 mm) |
|
Net weight |
47.00 lbs. (21.36 kg) |
|
Shipping Weight |
54.00 lbs. (24.56 kg) |
|
