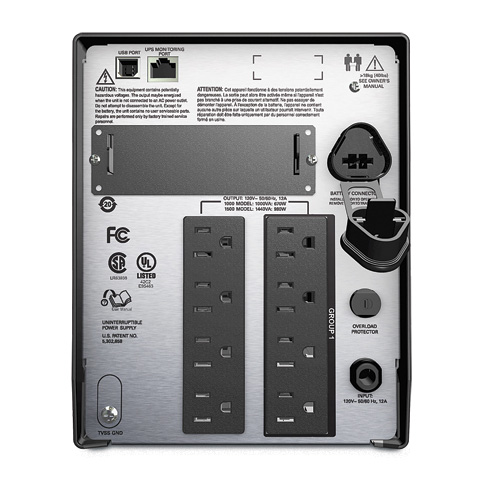

APC SMART-UPS 1500VA LCD SMT1500
Fresh New Batteries Installed
Fully Tested, Refurbished
1 Year Full Replacement Warranty
30 Day Money Back Guarantee!
Manufacturer: APC
Model Description: APC Smart UPS 1500VA LCD
Condition: Refurbished, New Batteries Installed
Part Number: SMT1500
Maximum output: 980 Watts / 1500 VA
Battery Protected Outlets: 8
Typical backup time at half load: 23.9 minutes (490 Watts)
Typical backup time at full load: 6.7 minutes (980 Watts)
Output Waveform: Sinewave
Warranty: 30 Day Money Back Guarantee! 1 Year Full Replacement Warranty
Includes: APC Smart-UPS 1500VA LCD, USB Cable, no other accessories included.
The SMT1500 is the newest generation of the APC Smart-UPS 1500. This is a heavy duty UPS that provides a sine wave output, surge protection, power filtering, AVR Boost/Drop and a great run time. This unit is ideal for protecting servers, or computers in mission critical applications. This UPS is also ideal for protecting Mac Pro 8 and 12 core.
APC Smart-UPS 1500VA LCD SMT1500 User's Manual
APC Smart UPS 1500 Specifications:
Output:
|
Output power capacity |
1500 VA |
|
Max Configurable Power |
1440 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(8) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet ( 1.83 meters ) |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC7 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
23.9 minutes (490 Watts) |
|
Typical backup time
at full load |
6.7 minutes (980 Watts) |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
8.62 inches (219 mm) |
|
Maximum width |
6.73 inches (171 mm) |
|
Maximum depth |
17.28 inches (439 mm) |
|
Net weight |
53 lbs. ( 24.09 kg ) |
|
Shipping Weight |
59.90 lbs. (27.23 kg) |
|
