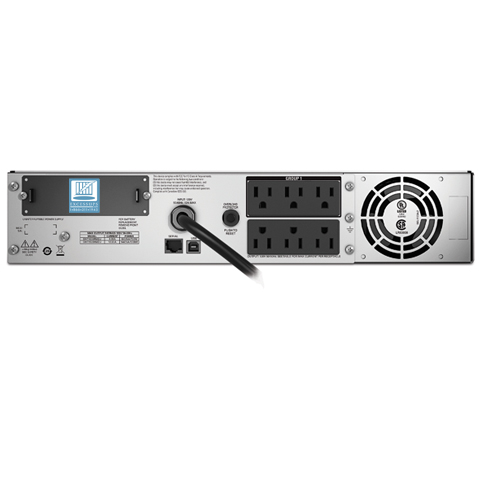

APC Smart UPS 1500VA LCD RM 2U 120V SMT1500RM2U
1000W / 1500VA
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
2 Year Warranty
The APC Smart-UPS 1500VA SMT1500RM2U is the newest generation of APC rack mount UPSs. This model replaces the legendary SUA1500RM2U which has been discontinued from production recently. The new design is sleek, and the functionality is legendary as always.
Manufacturer: APC
Model: APC Smart-UPS 1500VA LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMT1500RM2U
Maximum output: 1000 Watts / 1500VA
Battery Protected Outlets: 6
Typical backup time at half load: 25.8 minutes (500 Watts)
Typical backup time at full load: 7.2 minutes (1000 Watts)
Warranty: 2 year warranty on the unit, 2 year warranty on the battery
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
APC Smart-UPS 1500VA 120V LCD SMT1500RM2U User's Manual
Specifications for the APC Smart UPS 1500VA LCD:
Output:
|
Output power capacity |
1000 Watts / 1500VA |
|
Max Configurable Power |
1000 Watts / 1440VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
57 - 63 Hz for 60 Hz nominal |
|
Waveform type |
Sine wave |
|
Output Connections |
|
(6) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
8 feet (2.44 meters) |
|
Input voltage range for main operations |
82 - 144V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
25.8 minutes (500 Watts) |
|
Typical backup time at full load |
7.2 minutes (1000 Watts) |
Communications and Management:
|
Interface port |
SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
Multi-function LCD status and control console |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
|
|
Maximum width |
17.00 inches (432 mm) |
|
Maximum depth |
18.00 inches (457 mm) |
|
Net weight |
63.00 lbs. (28.64 kg) |
|
Shipping Weight |
70.20 lbs. (31.91 kg) |
| Rack Height |
2U |
|
