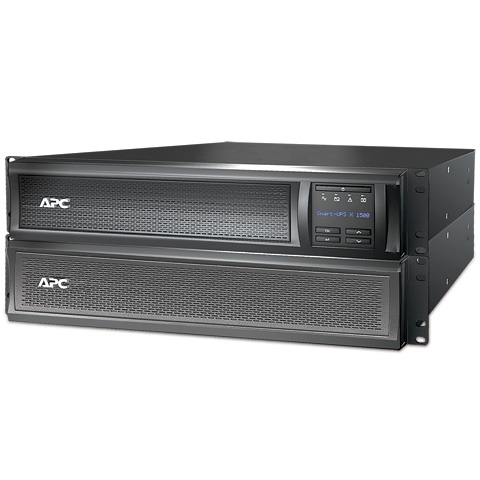

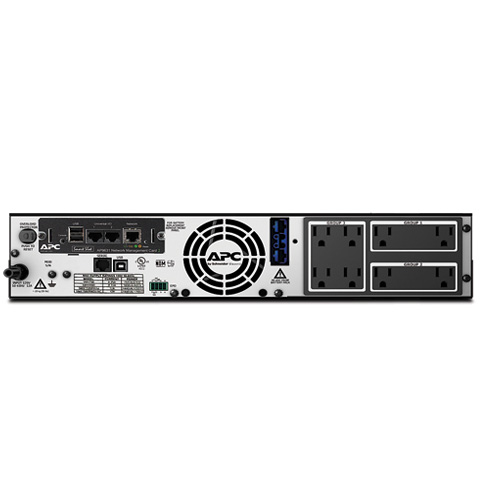

APC Smart UPS X 1500VA Rack/Tower LCD 120V SMX1500RM2UNC with Network Card
1200W / 1500VA
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty
The APC Smart-UPS X 1500VA is APC's new extended run time model. This is the newer version of the older XL units that allowed external battery packs to be added for extra run time. The SMX1500RM2UNC functions very much the same way. Additional battery packs (pn: SMX48RMBP2U) can be added to increase the run time. For example, with a load of 150W the SMX1500RM2U will provide 90 minutes of run time. The same 100W load on the SMX1500RM2U with a SMX48RMBP2U will provide a run time of 309 minutes. A significant increase in run time.
This particular edition, the SMX1500RM2UNC comes with an AP9631 management card. The AP9631 is the newest web/snmp management card available. It will allow remote management of the Smart-UPS X 1500VA through a network.
Manufacturer: APC
Model: APC Smart-UPS X 1500VA Rack/Tower LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMX1500RM2UNC
Maximum output: 1200 Watts / 1500 VA
Battery Protected Outlets: 8
Typical backup time at half load: 17.2 minutes (600 Watts)
Typical backup time at full load: 5.8 minutes (1200 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, Temperature Probe, USB cable
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
A brief summary of features for the APC Smart-UPS X 1500 1500VA SMX1500:
-
Adjustable voltage sensitivity
-
Adjustable voltage-transfer points
-
Audible alarms
-
Auto recognition of external batteries
-
Automatic restart of loads after UPS shutdown
-
Energy meter
-
Battery failure notification
-
Boost and Trim Automatic Voltage Regulation (AVR)
-
Cold-start capable
-
Disconnected battery notification
-
Energy meter
-
Green mode
-
High frequency design
-
High online efficiency
-
Hot-swappable batteries
-
Intelligent battery management
-
Intuitive LCD interface
-
Multiple mounting methods
-
Multiple switched outlet groups
-
Network manageable
-
Plug-and-Play external batteries
-
Power conditioning
-
Predictive replace battery date
-
Pure sine wave output on battery
-
Rack/Tower convertible
-
Safety-agency approved
-
Scalable runtime
-
Serial Connectivity
-
SmartSlot
-
Temperature-compensated battery charging
-
Transformer-block spaced outlets
-
USB connectivity
-
User-replaceable batteries
APC Smart-UPS X 1500VA LCD SMX1500RM2UNC Manual
Specifications for the APC Smart UPS X 1500VA:
Output:
|
Output power capacity |
1200 Watts / 1500 VA |
|
Max Configurable Power |
1200 Watts / 1500 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-63Hz |
|
Crest Factor |
up to 3 : 1 |
|
Waveform type |
Sine wave |
|
Output Connections |
|
(8) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
8 feet (2.44 meters) |
|
Input voltage range for main operations |
82 - 143 V |
|
Maximum Input Current |
12A |
| Input Breaker Capacity |
20A |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
17.2 minutes (600 Watts) |
|
Typical backup time at full load |
5.8 minutes (1200 Watts) |
Communications and Management:
|
Interface port |
RJ45 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 (AP9631) |
|
Control panel |
Multi-function LCD status and control console |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge:
|
Surge energy rating |
645 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
3.50 inches (89 mm) |
|
Maximum width |
17.00 inches (432 mm) |
|
Maximum depth |
19.30 inches (490 mm) |
|
Net weight |
54.60 lbs. (24.82 kg) |
|
Shipping Weight |
66.00 lbs. (30.00 kg) |
| Rack Height |
2U |
|
