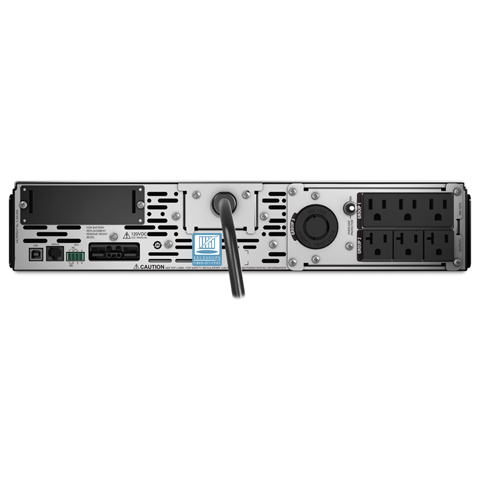

APC Smart UPS X 2000VA Rack/Tower LCD 120V SMX2000RMLV2U
1800W / 1920VA
NEW & Fresh Stock

30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty

The APC Smart-UPS X 2000VA is APC's new extended run time model. This is the newer version of the older XL units that allowed external battery packs to be added for extra run time. The SMX2000RMLV2U functions very much the same way. Additional battery packs (pn: SMX120RMBP2U) can be added to increase the run time. For example, with a load of 500W the SMX2000RMLV2U will provide 54 minutes of run time. The same 500W load on the SMX2000RMLV2U with a SMX120RMBP2U will provide a run time of 3 hours and 15 minutes. A significant increase in run time. Contact us if you need to achieve a specific run time with your equipment, we will make sure you get the set up you need.

The Smart UPS X 2000VA can be used as a tower unit or a rackmount 2U. All the necessary hardware is included.

Manufacturer: APC
Model: APC Smart-UPS X 2000VA Rack/Tower LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMX2000RMLV2U
Maximum output: 1800 Watts / 1920 VA
Battery Protected Outlets: 8
Typical backup time at half load: 27.6 minutes (900 Watts)
Typical backup time at full load: 11.0 minutes (1800 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable


The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices

APC Smart-UPS X 2000VA LCD SMX2000RMLV2U Manual

Output:

Output power capacity	1800 Watts / 1920 VA
Max Configurable Power	1800 Watts / 1920 VA
Nominal output voltage	120V
Output Voltage Distortion	less than 5% at full load
Output Frequency (sync to mains)	47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Waveform type	Sine wave
Output Connections	(3) NEMA 5-15R (3) NEMA 5-20R

Input:

Nominal input voltage	120V
Input frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type	NEMA 5-20P
Cord Length	8 feet (2.44 meters)
Input voltage range for main operations	82 - 147 V
Transfer Time	2-4 ms

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
RBC™ Quantity	1
Typical backup time at half load	27.6 minutes (900 Watts)
Typical backup time at full load	11.0 minutes (1800 Watts)

Communications and Management:

Interface port	RJ45 , SmartSlot , USB
Available Smart Slot Interface Quantity	1
Control panel	Multi-function LCD status and control console
Audible alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Yes

Surge:

Surge energy rating	540 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	3.36 inches (85 mm)
Maximum width	17.00 inches (432 mm)
Maximum depth	26.26 inches (667 mm)
Net weight	84.60 lbs. (38.45 kg)
Shipping Weight	99.79 lbs. (45.36 kg)
Rack Height	2U
