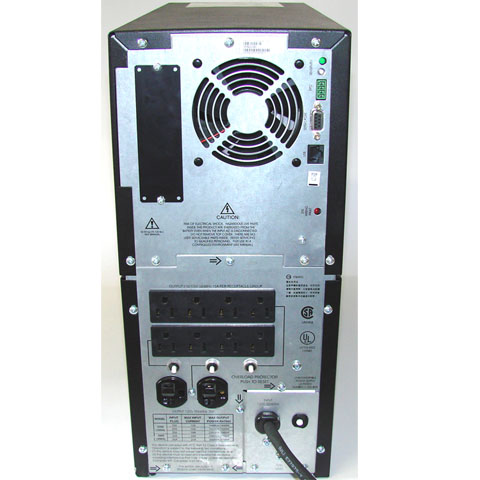

APC Smart UPS 2200
2200VA 1980W SUA2200
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
2 Year Warranty
Manufacturer: APC
Model Description: APC Smart UPS 2200 2200VA 1980W
Condition: Brand New & Fresh Stock
Part Number: SUA2200
Maximum output: 1980 Watts / 2200 VA
Typical backup time at half load: 24.1 minutes (990 Watts)
Typical backup time at full load: 6.7 minutes (1980 Watts)
Output Waveform: Sinewave
Warranty: 2 Year Full Replacement Warranty
Includes: CD with software, Smart UPS signaling RS-232 cable, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
A brief summary of features for the APC Smart-UPS 2200:
- Adjustable voltage sensitivity
- Adjustable voltage-transfer points
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Disconnected battery notification
- Front-access servicing
- Generator compatible
- Hot-swappable batteries
- InfraStruXure Manager compatible
- Intelligent battery management
- LED status indicators
- Network manageable
- Power conditioning
- Predictive failure notification
- Resettable circuit breakers
- Safety-agency approved
- Serial Connectivity
- SmartSlot
- Temperature-compensated battery charging
- USB connectivity
- User-replaceable batteries
APC Smart-UPS 2200 Tower SUA2200 User's Manual
Detailed specifications for the APC Smart UPS 2200:
Output:
|
Output power capacity |
1980 Watts / 2200 VA |
|
Max Configurable Power |
1980 Watts / 2200 VA |
|
Nominal output voltage |
120V |
|
Efficiency at Full Load |
95.00% |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
| Output Connections |
|
(8) NEMA 5-15R |
|
| (2) NEMA 5-20R |
 | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-20P |
| |
|
Cord Length |
6 feet ( 1.83 meters ) |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC55 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
24.1 minutes (990 Watts) |
|
Typical backup time
at full load |
6.7 minutes (1980 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
432.00 mm |
|
Maximum width |
196.00 mm |
|
Maximum depth |
546.00 mm |
|
Net weight |
50.91 KG |
|
Shipping Weight |
62.00 KG |
|
