APC Smart UPS 2200VA LCD RM 2U 120V SMT2200RM2U
1980W / 2200VA
NEW & Fresh Stock

30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty

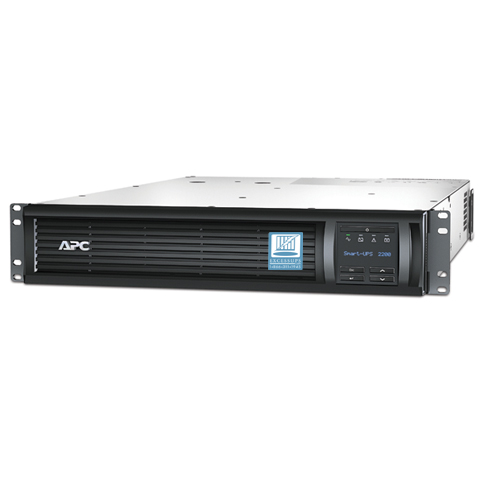

The APC Smart-UPS 2200VA SMT2200RM2U is the newest generation of APC rack mount UPSs. This model replaces the legendary SUA2200RM2U which has been discontinued from production recently. The features are similar to the features of the previous 2200 with the addition of a new LCD display on the front. The new display shows UPS parameters and allows for control of some UPS features saving time by avoiding having to load PowerChute everytime you want to do anything with the UPS. The new design is sleek, and the functionality is legendary as always.

If you need help figuring out which back up system you need, get in touch with us right away, we'll help you get the perfect configuration for your set up.

Manufacturer: APC
Model: APC Smart-UPS 2200VA LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMT2200RM2U
Maximum output: 1980 Watts / 2200VA
Battery Protected Outlets: 8
Typical backup time at half load: 15.2 minutes (990 Watts)
Typical backup time at full load: 5.1 minutes (1980 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable


The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices

APC Smart-UPS 2200VA 120V LCD SMT2200RM2U User's Manual

Output:

Output power capacity	1980 Watts / 2200VA
Max Configurable Power	1980 Watts / 1440VA
Nominal output voltage	120V
Output Voltage Distortion	less than 5% at full load
Output Frequency (sync to mains)	57 - 63 Hz for 60 Hz nominal
Waveform type	Sine wave

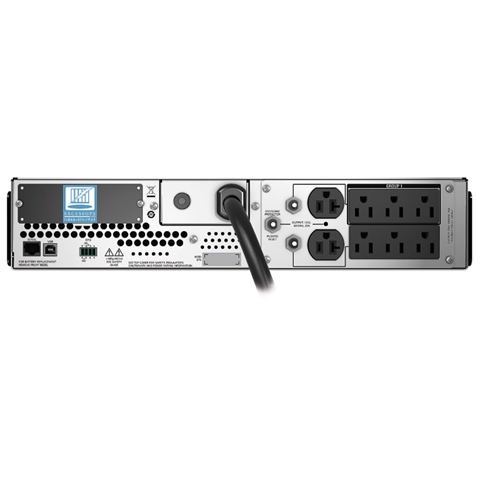

Output Connections	(6) NEMA 5-15R (2) NEMA 5-20R

Input:

Nominal input voltage	120V
Input frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type	NEMA 5-20P
Cord Length	8 feet (2.44 meters)
Input voltage range for main operations	82 - 143V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
RBC™ Quantity	1 - RBC43
Typical backup time at half load	15.2 minutes (990 Watts)
Typical backup time at full load	5.1 minutes (1980 Watts)

Communications and Management:

Interface port	SmartSlot , USB
Available Smart Slot Interface Quantity	1
Control panel	Multi-function LCD status and control console
Audible alarm	LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Emergency Power Off (EPO)	Optional

Surge:

Surge energy rating	530 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	3.39 inches (86 mm)
Maximum width	18.90 inches (480 mm)
Maximum depth	26.89 inches (683 mm)
Net weight	93.08 lbs. (42.31 kg)
Shipping Weight	109.41 lbs. (49.73 kg)
Rack Height	2U
