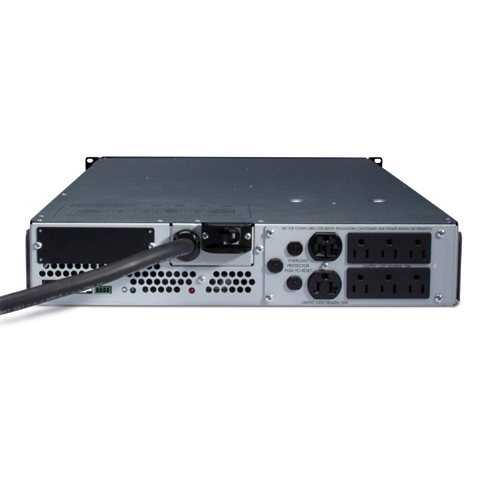

APC Smart UPS 2200VA USB & Serial RM 2U
2200VA 1980W SUA2200RM2U
NEW & Fresh Stock

30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty

Manufacturer: APC
Model: APC Smart-UPS 2200VA RM 2U USB & Serial 120V
Condition: Brand New, Fresh Stock
Part Number: SUA2200RM2U
Maximum output: 1980 Watts / 2200 VA
Battery Protected Outlets: 8
Typical backup time at half load: 15.7 minutes (990 Watts)
Typical backup time at full load: 5.2 minutes (1980 Watts)
Warranty: 2 Year Repair or Replace, 30 day full money back warranty

Includes: CD with software, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual


The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices

• Adjustable voltage sensitivity
• Adjustable voltage-transfer points
• Audible alarms
• Automatic restart of loads after UPS shutdown
• Automatic self-test
• Boost and Trim Automatic Voltage Regulation (AVR)
• Cold-start capable
• Disconnected battery notification
• Front-access servicing
• Generator compatible
• Hot-swappable batteries
• InfraStruXure Manager compatible
• Intelligent battery management
• LED status indicators
• Network manageable
• Power conditioning
• Predictive failure notification
• Resettable circuit breakers
• Safety-agency approved
• Serial Connectivity
• SmartSlot
• Temperature-compensated battery charging
• USB connectivity
• User-replaceable batteries

APC Smart-UPS 2200 RM 2U SUA2200RM2U User's Manual

Output:

Output power capacity	1980 Watts / 2200VA
Max Configurable Power	1980 Watts / 2200 VA
Nominal output voltage	120V
Output Voltage Distortion	less than 5% at full load
Output Frequency (sync to mains)	47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal
Crest Factor	up to 5 : 1
Waveform type	Sine wave
Output Connections	(6) NEMA 5-15R (2) NEMA 5-20R

Input:

Nominal input voltage	120V
Input frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type	NEMA 5-20P
Cord Length	8 feet (2.44 meters)
Input voltage range for main operations	82 - 144 V
Input voltage adjustable range for mains operation	75 - 154 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC43
RBC™ Quantity	1
Typical backup time at half load	15.7 minutes (990 Watts)
Typical backup time at full load	5.2 minutes (1980 Watts)

Communications and Management:

Interface port	DB-9 RS-232 , SmartSlot , USB
Available Smart Slot Interface Quantity	1
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Optional

Surge:

Surge energy rating	480 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	3.50 inches (89 mm)
Maximum width	19.00 inches (483 mm)
Maximum depth	26.00 inches (660 mm)
Rack Height	2U
Net weight	96.00 lbs. (43.64 kg)
Shipping Weight	125.00 lbs. (56.82 kg)
