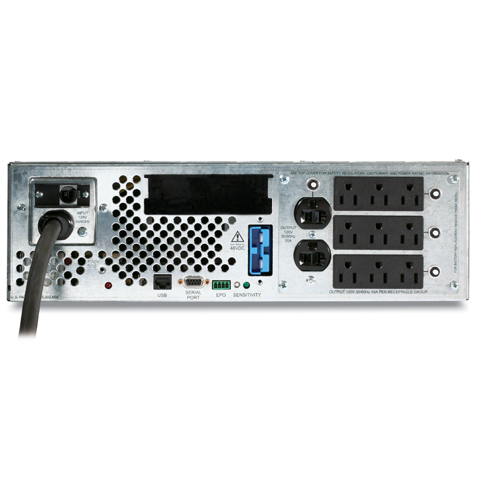

APC Smart UPS 2200 XL RM 3U 2200VA 1980W SUA2200RMXL3U
Refurbished with New Batteries
30 Day Money Back Guarantee (includes shipping!)
1 Year Full Replacement Warranty
100% Satisfaction Guaranteed!
Manufacturer: APC
Model: APC Smart UPS XL 2200VA Rackmount 3U
Condition: Refurbished with New Batteries
Part Number: SUA2200RMXL3U
Maximum output: 1980 Watts / 2200 VA
Battery Protected Outlets: 11
Typical backup time at half load: 24 minutes (990 Watts)
Typical backup time at full load: 9 minutes (1980 Watts)
Warranty: 1 Year Full Replacement warranty. 30 Day Full Money Back Guarantee
Includes: APC Smart UPS 2200XL (rail kit not included)
APC Smart-UPS 2200XL SUA2200XLRM3U 3U User's Manual
This APC Smart-UPS 2200 XL rack mount 3U is an extended runtime UPS. This UPS can have external battery packs attached to allow for a significant increase in runtime. It is a modular UPS providing the ability to expand as the need for run time increases. Up to ten external battery packs can be added to this UPS to provide an extremely long run time. If you need help configuring your UPS for a specific run time, contact us and we will configure it for you.
For example, with a load of 400W the UPS will provide a runtime of approximately 1hr and 32minutes. Once a SUA48RMXLBP3U battery pack is attached, the runtime available becomes approximately 4hrs and 17minutes. If two battery packs are attached, the runtime becomes approximately 7hrs and 31minutes. Each battery pack attached provides a significant increase in runtime available on the UPS.
To get prompt help with configuration, call us now at 866-311-1945!
Output:
|
Output power capacity |
1980 Watts / 1850 VA |
|
Max Configurable Power |
1980 Watts / 2200 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(9) NEMA 5-15R |
|
| (2) NEMA 5-20R |
 | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA L5-20P |
| |
|
Cord Length |
8 feet ( 2.44 meters ) |
|
Input voltage range for main operations |
82 - 147 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC105 |
|
RBC™ Quantity |
1 |
|
External Battery Pack |
SUA48RMXLBP3U ONLY |
|
Typical backup time
at half load |
24 minutes (990 Watts) |
|
Typical backup time
at full load |
9 minutes (1980 Watts) |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
880 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
5.25 inches (133 mm) |
|
Maximum width |
19.00 inches (483 mm) |
|
Maximum depth |
26.00 inches (660 mm) |
|
Rack Height |
3 U |
|
Net weight |
131.00 lbs. (59.55 kg) |
|
Shipping Weight |
153.00 lbs. (69.55 kg) |
|
