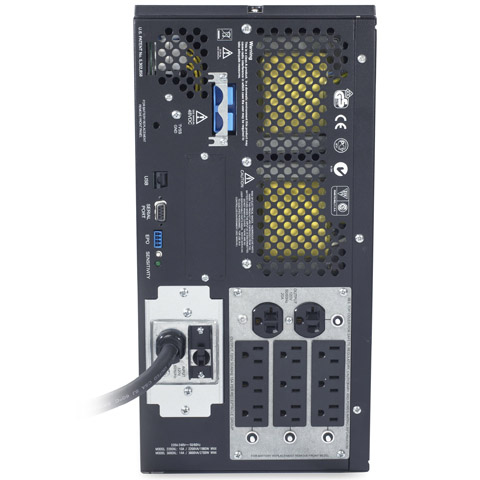

APC Smart-UPS 2200XL 2200VA 1850W SUA2200XL Battery Backup
Refurbished with New Batteries
1 Year Full Replacement Warranty
100% Satisfaction Guaranteed!
Manufacturer: APC
Model Description: APC Smart UPS 2200XL 2200VA 1850W SUA2200XL USB & Serial 120V
Condition: Refurbished with Brand New Batteries
Part Number: SUA2200XL
Maximum output: 1850 W / 2200 VA
Typical backup time at half load: 28.5 minutes (925 Watts)
Typical backup time at full load: 10.4 minutes (1850 Watts)
Output Waveform: Sinewave
Warranty: 1 Year Full Replacement Warranty
APC Smart-UPS 2200 SUA2200XL User's Manual
A serial communications cable (940-0024C) is included with this item. It will give you greater control and customization options for this UPS. APC's PowerChute software, available free of charge on APC's website, provides extended features and abilities to enhance the effectiveness and usefulness of this UPS.
APC PowerChute Business Edition Basic v 7.0.5
Output:
|
Output power capacity |
1850 Watts / 2200 VA |
|
Max Configurable Power |
1850 Watts / 2200 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
| Output Connections |
|
(9) NEMA 5-15R |
|
| (2) NEMA 5-20R |
 | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-20P |
| |
|
Cord Length |
2.44 Meters |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC55 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
28.5 minutes (925 Watts) |
|
Typical backup time
at full load |
10.4 minutes (1850 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
Surge:
|
Surge energy rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
432.00 mm |
|
Maximum width |
196.00 mm |
|
Maximum depth |
503.00 mm |
|
Net weight |
55.91 KG |
|
Shipping Weight |
63.64 KG |
|
