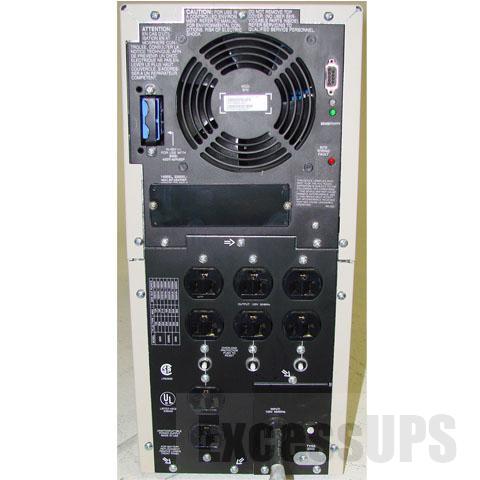

APC SMART-UPS XL 2200VA EXTENDED RUN
TIME MODEL
SU2200XLNET
Refurbished with New Batteries
1 Year Full
Replacement Warranty
30 Day Money Back Guarantee!
Manufacturer: APC
Model Description: APC Smart UPS XL 2200VA
Condition: Refurbished, New Batteries
Installed
Part Number: SU2200XLNET
Maximum output: 1600 Watts
/ 2200 VA
Battery Protected Outlets: 8
Typical backup
time at half load:
34.3 minutes (800
Watts)
Typical backup
time at full
load:
9.7 minutes (1600 Watts)
Output
Waveform:
Sinewave
Warranty: 30
Day Money Back Guarantee! 1 Year Full Replacement Warranty
The APC Smart-UPS
XL 2200 is an extended runtime model. Additional battery packs can be added to this UPS to increase the runtime available. The battery packs are plug and play and require no installation. Up to 10 external battery packs can be attached to this unit to provide an extraordinarily long runtime.
The APC Smart-UPS 2200XL is an excellent unit for any company who will be expanding and may need to add more capacity. Instead of having to constantly buy more UPSs, this scaleable model is expandable to provide any additional power capacity you may need.
There are
no battery packs included with this auction. This auction is for the APC
Smart-UPS 2200XL UPS. You can purchase the the
SU48XLBP battery packs
on our site.
APC Smart-UPS 2200XL User’s Manual
The 2200XL provides extended runtime by supporting external battery packs. External Battery Packs are not included
with this item.
|
Model plus battery quantity |
Typical backup time at 50W
|
|
SU2200XLNET |
8 hrs 51 mins |
|
SU2200XLNET + (1)SU48XLBP |
18 hrs 17 mins |
|
SU2200XLNET + (2)SU48XLBP |
27 hrs 44 mins |
|
SU2200XLNET + (3)SU48XLBP |
37 hrs 11 mins |
|
SU2200XLNET + (4)SU48XLBP |
46 hrs 38 mins |
|
SU2200XLNET + (1)UXBP48 |
47 hrs 45 mins |
|
SU2200XLNET + (2)UXBP48 |
86 hrs 39 mins |
Output:
|
Output power capacity |
1600 Watts / 2200 VA |
|
Max Configurable Power |
1600 Watts / 2200 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
Less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sine wave |
|
Output Connections |
|
(8) NEMA 5-15R |
|
|
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA L5-30P |
|
|
|
Cord Length |
6.56’ ( 2 meters ) |
|
Input voltage range for main operations |
92 - 147 V |
|
Input voltage adjustable range for mains operation |
86 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical Recharge Time |
3 Hours |
|
Replacement battery cartridge |
RBC11 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
34.3 minutes (800 Watts) |
|
Typical backup time
at full load |
9.7 minutes (1600 Watts) |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
17.00 inches (432 mm)
|
|
Maximum width |
7.70 inches (196 mm)
|
|
Maximum depth |
21.50 inches (546 mm)
|
|
Net weight |
121.00 lbs.
(55.00 kg) |
|
Shipping Weight |
140.00 lbs.
(63.64 kg) |
|
