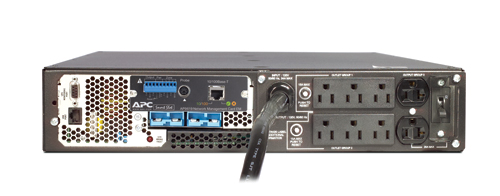

APC Smart UPS XL Modular 3000VA 120V Rackmount/Tower SUM3000RMXL2U
3000VA 2850W
Refurbished with New Batteries
1 Year Full Replacement Warranty

100% Satisfaction Guaranteed!

Manufacturer: APC
Model Description: APC Smart-UPS XL 3000VA Modular 120V Rack/Tower
Condition: This unit is in excellent condition. Refurbished with Brand New Batteries.
Part Number: SUM3000RMXL2U
Maximum output: 2850 W / 3000 VA
Typical backup time at half load: 11.0 minutes (1425 Watts)
Typical backup time at full load: 3.0 minutes (2850 Watts)
Output Waveform: Sinewave
Warranty: 1 Year Full Replacement Warranty
Includes: APC SmartUPS XL 3000VA. There are no cables, rails, or accessories included.


The Smart-UPS XL 3000VA is a modular uninterruptible power supply designed to work in mission critical environments. This UPS is designed to prevent surges, spikes, black outs and completely isolates your equipment from fluctuations by internally disconnecting from utility power. This UPS is modular, if problems occur the UPS can diagnose the problems and the modules can be field replaced. This is an important feature in mission critical data center operations.

This UPS is an extended run time model, up to 10 external battery packs can be added to provide run times of over 24 hours. The battery packs can be added as demand increases, allowing for effective cost management and expansion as needed.

APC Smart-UPS XL 3000VA SUM3000RMXL2U User's Manual

Output:

Output power capacity	2850 Watts / 3000 VA
Max Configurable Power	2850 Watts / 3000 VA
Nominal output voltage	120V
Crest Factor	3 : 1
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Waveform type	Sinewave
Bypass	Internal Bypass (Automatic and Manual)
Output Connections	(6) NEMA 5-15R (2) NEMA 5-20R
Efficiency at Full Load	95%

Input:

Nominal input voltage	120V
Input frequency	50/60 Hz +/- 5 Hz (auto sensing)
Input Connection Type	NEMA L5-30P
Cord Length	10 feet (3.05 meters)
Input voltage range for main operations	82- 147V
Input voltage adjustable range for mains operation	75 - 154V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules	1
Typical recharge time	3 hours
RBC™ Quantity	1
Replacement Battery	RBC43
Typical backup time at half load	11.0 minutes (1425 Watts)
Typical backup time at full load	3.0 minutes (2850 Watts)

Communications and Management:

Interface port	DB-9 RS-232,RJ-45 10/100 Base-T,USB
Available Smart Slot Interface Quantity	1
Pre-Installed SmartSlot Car	AP9619
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Yes

Surge:

Surge energy rating	540 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	3.40 inches (86 mm)
Maximum width	17.00 inches (432 mm)
Maximum depth	26.70 inches (678 mm)
Rack Height	2U
Net weight	103.00 lbs. (46.82 kg)
Shipping Weight	125.00 lbs. (56.82 kg)
