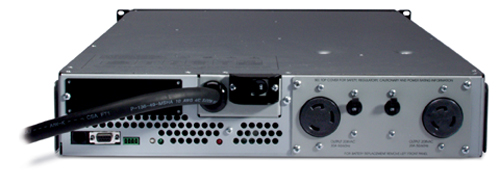

APC SMART-UPS 3000 Rackmount 2U 208V
3000VA 2700W
DLA3000RMT2U SUA3000RMT2U 208V
Refurbished with New Batteries
1 Year Warranty
Manufacturer: APC
Model: APC Smart-UPS 3000 Rackmount 2U 3000VA 2700W 208V Input
Part Number: DLA3000RMT2U and SUA3000RMT2U
At ExcessUPS we specialize in APC power protection products. We professionally refurbish and thoroughly test each and every APC UPS. Every refurbished APC battery backup UPS has brand new high quality batteries installed that meet or exceed APC’s specifications. We install only high quality long life batteries in every uninterruptible power supply, providing reliable and dependable power protection.
This unit is in excellent condition, fully tested and refurbished! Brand new batteries have been installed into this unit. The unit function perfectly and we guarantee the unit and the batteries for one year. This is the Dell edition of the SUA3000RMT2U, manufactured by APC for Dell. The DLA3000RMT2U and the SUA3000RMT2U are identical.
APC Smart-UPS 3000 Rackmount 2U SUA3000RMT2U and DLA3000RMT2U User's Manual
A serial communications cable (940-0024C) is included with this item. It will give you greater control and customization options for this UPS. APC's PowerChute software, available free of charge on APC's website, provides extended features and abilities to enhance the effectiveness and usefulness of this UPS.
APC PowerChute Business Edition Basic v 7.0.5
Output:
|
Output power capacity |
2700 Watts / 3000 VA |
|
Max Configurable Power |
2700 Watts / 3000 VA |
|
Nominal output voltage |
208V |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(1) NEMA L6-20R |
|
| (1) NEMA L6-30R |
 | |
Input:
|
Nominal input voltage |
208V |
|
Input frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA L6-30P
NEMA L6-20P |
| |
|
Cord Length |
2.44 meters |
|
Input voltage range for main operations |
141 - 255V |
|
Input voltage adjustable range for mains operation |
131 - 268V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time |
3 hour(s) |
|
Replacement battery cartridge |
RBC43 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
11.3 minutes (1350 Watts) |
|
Typical backup time
at full load |
3.0 minutes (2700 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , |
|
Available Smart Slot Interface Quantity |
1 |
| Pre-Installed SmartSlot™ Cards |
AP9617 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
89.00 mm |
|
Maximum width |
483.00 mm |
|
Maximum depth |
660.00 mm |
| Rack Height |
2U |
|
Net weight |
43.64 KG / 96.2 LBS |
|
Shipping Weight |
56.82 KG / 125.26 LBS |
|
