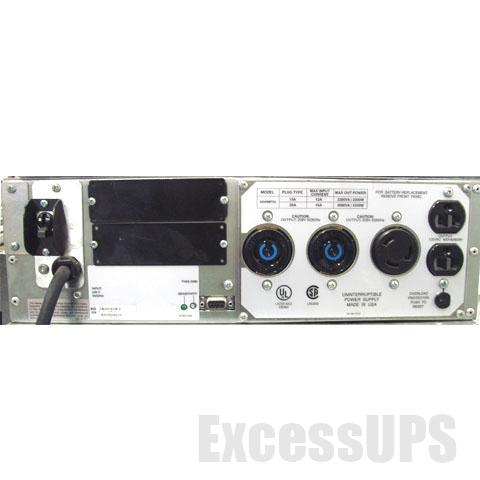

APC Smart-UPS 3000 Rackmount 3U
SU3000RMT3U 208V
Refurbished with New Batteries
At ExcessUPS we specialize in APC power protection products. We professionally refurbish and thoroughly test each and every APC UPS. Every refurbished APC battery backup UPS has brand new high quality batteries installed that meet or exceed APC’s specifications. We install only high quality long life batteries in every uninterruptible power supply, providing reliable and dependable power protection.
APC Smart-UPS 3000 208V SU3000RM3U User's Manual
A serial communications cable (940-0024C) is included with this item. It will give you greater control and customization options for this UPS. APC's PowerChute software, available free of charge on APC's website, provides extended features and abilities to enhance the effectiveness and usefulness of this UPS.
APC PowerChute Business Edition Basic v 7.0.5
This APC Smart-UPS 3000 SU3000RMT3U requires a dedicated 208V 20A line. This UPS will not work on a 115V or 250V. Must have a 208V input.
Output:
|
Output power capacity |
3000 VA |
|
Output power capacity |
2250 watts |
|
Max Configurable Power |
3000 VA |
|
Max Configurable Power |
2250 watts |
|
Nominal output voltage |
208V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(2) NEMA 5-15R |
 |
|
(2) NEMA L6-20R |
 |
|
(1) NEMA L6-30R |
 |
|
Input:
|
Nominal input voltage |
208V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA L6-20P |
 | |
|
Cord Length |
6.5’ feet ( 2 meters ) |
|
Input voltage range for main operations |
157 - 255V |
|
Input voltage adjustable range for mains operation |
151 - 268V |
Batteries and Runtime
Communications and Management
|
Interface port |
DB-9 RS-232 , SmartSlot |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge
|
Surge energy rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical
|
Maximum height |
5 inches ( 13.34 cm ) |
|
Maximum width |
19 inches ( 48.26 cm ) |
|
Maximum depth |
25 inches ( 63.50 cm ) |
|
Rack Height |
3 U |
|
Net weight |
129 lbs. ( 58 kg ) |
|
Shipping Weight |
147 lbs. ( 66.82 kg ) |
|
