Description
Details
Manufacturer: APC

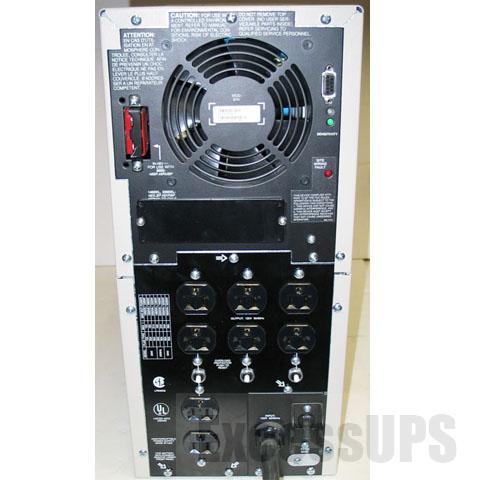

Model: APC Smart-UPS 3000VA 2250W, Tower, 120V
Condition: New batteries, refurbished UPS
Part Number: SU3000NET
Maximum output: 2250W / 3000VA
Typical backup time at half load: 16.1 minutes (250 Watts)
Typical backup time at full load: 5.5 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 3000VA 2250W SU3000NET Manual
SU3000NET - APC Smart-UPS Specifications:
Main:
Main Input Voltage |
120V |
||
Main Output Voltage |
120V |
||
Rated Power in W |
2250W |
||
Rated Power in VA |
3000VA |
||
Input Connection Type |
|
||
Output Connection Type |
|
||
Number of Rack Unit |
0U |
||
Cable Length |
6 ft (1.83 m) |
||
Number of Cables |
1 |
||
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
Extendable Run Time |
1 |
Included Battery Modules |
0 |
Battery Slots Empty |
0 |
Typical Recharge Time |
3 h |
RBC Quantity |
1 |
Battery Life |
3 - 5 year(s) |
Replacement Battery |
RBC11 |
Battery Power in VAH |
816 VAh runtime |
Battery Charge Power (Watts) |
271 W rated |
Battery Option |
SU48BP 1 1632 VAh |
General:
Number of Power Module Filled Slots |
0 |
Number of Power Module Free Slots |
0 |
Redundant |
No |
Physical:
Color |
Beige |
Height |
17.0 inches (432mm, 43.2cm) |
Width |
7.7 inches (196mm, 19.6cm) |
Depth |
21.5 inches (546mm, 54.6cm) |
Net Weight |
123.0 lbs. (55.91kg) |
Mounting Location |
Front |
Mounting Preference |
No preference |
Mounting Mode |
Not rack-mountable |
Two Post Mountable |
1 |
USB Compatible |
No |
Input:
Efficiency at Full Load |
86-154V adjustable |
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Crest Factor |
Up to 5 : 1 |
Harmonic Distortion |
Less than 5 % at full load |
Maximum Configurable Power in VA |
3000VA |
Max Configurable Power (Watts) |
2250W |
Transfer Time |
2ms typical |
Topology |
Line Interactive |
Waveform Type |
Sine Wave |
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
Product Certifications |
CSA |
Environmental:
Acoustic Level |
53 dBA
|
Heat Dissipation |
375 Btu/h |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Relative Humidity |
0 - 95 % |
Storage Relative Humidity |
0 - 95 % |
Communications & Management:
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
Emergency Power Off (EPO) |
Optional |
Free Slots |
1 |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
Surge Energy Rating |
880 J
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Tower |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 3000VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
