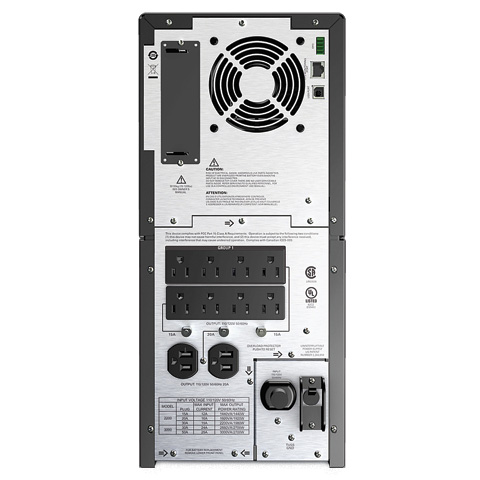

APC Smart UPS 3000VA LCD SMT3000
2700W / 3000VA
NEW & Fresh Stock

30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty

Manufacturer: APC
Model: APC Smart-UPS 3000VA LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMT3000
Maximum output: 2700 Watts / 3000 VA
Battery Protected Outlets: 10
Typical backup time at half load: 13.6 minutes (1350 Watts)
Typical backup time at full load: 5.5 minutes (2700 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery

Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable


The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices

• Intuitive LCD interface

• Predictive replace battery date

• InfraStruXure Central compatible

• Cold-start capable

• Serial Connectivity

• Resettable circuit breakers

• Hot-swappable batteries

• Disconnected battery notification

• Automatic self-test

• Automatic restart of loads after UPS shutdown

• Adjustable voltage-transfer points

• Adjustable voltage sensitivity

• Audible alarms

• User-replaceable batteries

• USB connectivity

• Serial Connectivity

• Temperature-compensated battery charging

• Boost and Trim Automatic Voltage Regulation (AVR)

• Intelligent battery management

• Power conditioning

• Network manageable

• Adjustable voltage sensitivity

• Predicative failure notification

APC Smart-UPS 3000VA LCD SMT3000 Manual

Output:

Output power capacity	2700 Watts / 3000 VA
Max Configurable Power	2700 Watts / 3000 VA
Nominal output voltage	120V
Output Voltage Distortion	less than 5% at full load
Output Frequency (sync to mains)	47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal
Crest Factor	up to 5 : 1
Waveform type	Sine wave
Output Connections	(8) NEMA 5-15R (2) NEMA 5-20R

Input:

Nominal input voltage	120V
Input frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type	NEMA L5-30P
Cord Length	6 feet
Input voltage range for main operations	82 - 144 V
Input voltage adjustable range for mains operation	75 - 154 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC55
RBC™ Quantity	1
Typical backup time at half load	13.6 minutes (1350 Watts)
Typical backup time at full load	5.5 minutes (2700 Watts)

Communications and Management:

Interface port	DB-9 RS-232 , SmartSlot , USB
Available Smart Slot Interface Quantity	1
Control panel	Multi-function LCD status and control console
Audible alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Optional

Surge:

Surge energy rating	530 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	17.00 inches (432 mm)
Maximum width	7.70 inches (196 mm)
Maximum depth	21.50 inches (546 mm)
Net weight	116.00 lbs. (52.73 kg)
Shipping Weight	134.00 lbs. (60.91 kg)
