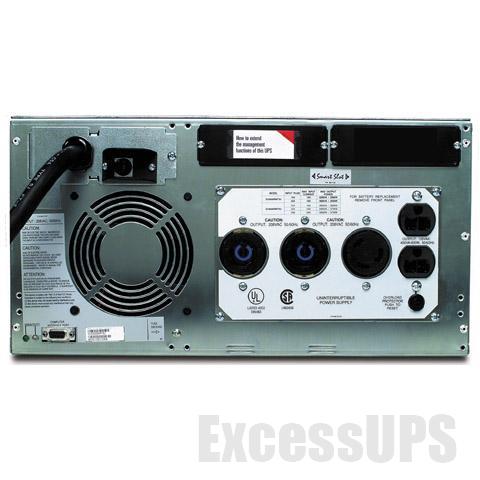

APC SMART-UPS 5000VA RM 5U
5000VA 3750W SU5000RMT5U 208V
Refurbished with New Batteries
1 Year Warranty
Manufacturer: APC
Model: APC Smart-UPS 5000 5000VA 3750W Rackmount 5U 208V
Part Number: SU5000RMT5U
At ExcessUPS we specialize in APC power protection products. We professionally refurbish and thoroughly test each and every APC UPS. Every refurbished APC battery backup UPS has brand new high quality batteries installed that meet or exceed APC’s specifications. We install only high quality long life batteries in every uninterruptible power supply, providing reliable and dependable power protection.
This unit is in excellent condition, minor scratches on the top and sides from mounting and dismounting, nothing significant. The unit function perfectly and we guarantee the unit and the batteries for one year.
The AP9617 WEB/SNMP Management card is included with this item. The AP9617 will provide you greater monitoring control and options for this UPS.
APC Smart-UPS 5000 Rackmount 5U SU5000RMT5U User's Manual
APC PowerChute Business Edition Basic v 7.0.5
Output:
|
Output power capacity |
3750 Watts / 5000 VA |
|
Max Configurable Power |
3750 Watts / 5000 VA |
|
Nominal output voltage |
208V |
| Output Voltage Note |
Also provides up to 400VA of 120V with (2) NEMA 5-15 receptacles |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(2) NEMA 5-15R |
|
| (2) NEMA L6-20R |
 |
| (1) NEMA L6-30R |
 | |
Input:
|
Nominal input voltage |
208V |
|
Input frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA L6-30P |
| |
|
Cord Length |
2.44 meters |
|
Input voltage range for main operations |
157 - 255V |
|
Input voltage adjustable range for mains operation |
151 - 268V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time |
3 hour(s) |
|
Replacement battery cartridge |
This unit takes two sets of RBC12 Battery Packs |
|
RBC™ Quantity |
2 |
|
Typical backup time
at half load |
18.8 minutes (1875 Watts) |
|
Typical backup time
at full load |
5.7 minutes (3750 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , |
|
Available Smart Slot Interface Quantity |
1 |
| Pre-Installed SmartSlot™ Cards |
AP9617 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
1020 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
222.00 mm |
|
Maximum width |
483.00 mm |
| Rack Height |
5U |
|
Maximum depth |
635.00 mm |
|
Net weight |
102.27 KG |
|
Shipping Weight |
111.36 KG (244lbs) |
|
