APC Smart UPS 5000VA 208V RM 5U w/Transformer
5000VA 4000W SUA5000R5TXFMR
NEW & Fresh Stock

30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty

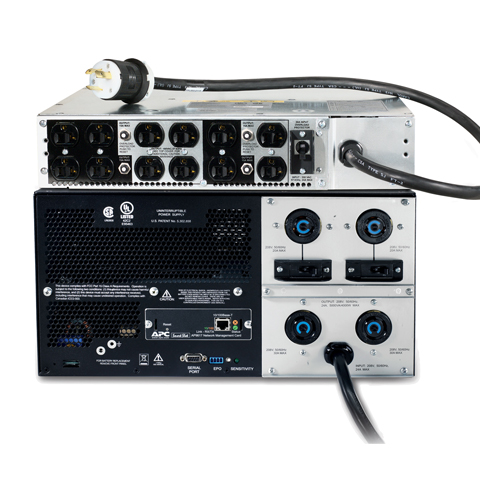

The SUA5000R5TXFMR is a Smart-UPS 5000 with a step down transformer. It provides outputs of 208V & 120V. This unit has the step down included and a preinstalled AP9617 smart slot card. The step down transformer plugs into the the 208V 30A NEMA L6-30P on the back of the 5000 and provides (12) NEMA 5-20R receptacles. This unit would be useful to anyone who has 208V servers and 115V appliances in the same rack.

Manufacturer: APC
Model: APC Smart-UPS 5000VA RM 5U 208V
Condition: Brand New, Fresh Stock
Part Number: SUA5000R5TXFMR
Maximum output: 4000 Watts / 5000 VA
Battery Protected Outlets: 15
Typical backup time at half load: 26.7 minutes (2000 Watts)
Typical backup time at full load: 9.4 minutes (4000 Watts)
Warranty: 2 Year Repair or Replace, 30 day full money back warranty

Includes: CD with software, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual


The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices

• Adjustable voltage sensitivity
• Adjustable voltage-transfer points
• Audible alarms
• Automatic restart of loads after UPS shutdown
• Automatic self-test
• Boost and Trim Automatic Voltage Regulation (AVR)
• Cold-start capable
• Disconnected battery notification
• Front-access servicing
• Generator compatible
• Hot-swappable batteries
• InfraStruXure Manager compatible
• Intelligent battery management
• LED status indicators
• Network manageable
• Power conditioning
• Predictive failure notification
• Resettable circuit breakers
• Safety-agency approved
• Serial Connectivity
• SmartSlot
• Temperature-compensated battery charging
• USB connectivity
• User-replaceable batteries

APC Smart-UPS 5000 RM 5U SUA5000R5TXFMR User's Manual

Output:

Output power capacity	4000 Watts / 5000VA
Max Configurable Power	4000 Watts / 5000 VA
Nominal output voltage	208V, 120V
Output Voltage Distortion	less than 5% at full load
Output Frequency (sync to mains)	47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal
Crest Factor	up to 5 : 1
Waveform type	Sine wave
Output Connections	(12) NEMA 5-20R (2) NEMA L6-20R (1) NEMA L6-30R

Input:

Nominal input voltage	208V
Input frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type	NEMA L6-30P
Cord Length	8 feet (2.44 meters)
Input voltage range for main operations	157 - 255 V
Input voltage adjustable range for mains operation	151 - 268 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC55 (2)
RBC™ Quantity	1
Typical backup time at half load	26.7 minutes (2000 Watts)
Typical backup time at full load	9.4 minutes (4000 Watts)

Communications and Management:

Interface port	DB-9 RS-232,RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management,SmartSlot
Pre-Installed SmartSlot™ Cards	AP9617
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Yes

Surge:

Surge energy rating	1020 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	12.25 inches (311 mm)
Maximum width	19.00 inches (483 mm)
Maximum depth	25.00 inches (635 mm)
Rack Height	7U
Net weight	320.00 lbs. (145.45 kg)
Shipping Weight	355.00 lbs. (161.36 kg)
