APC Smart UPS 750VA LCD RM 2U 120V SMT750RM2U
500W / 750VA
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty

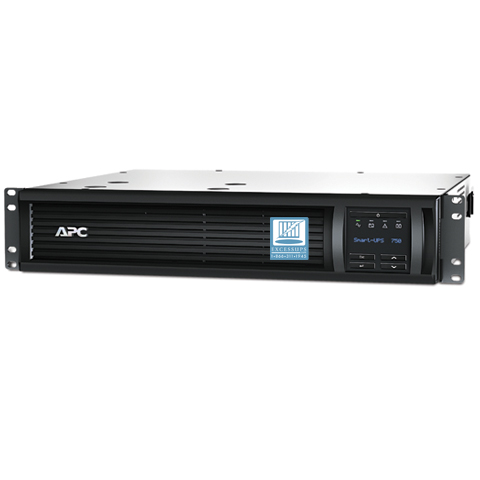

The APC Smart-UPS 750VA SMT750RM2U is the newest generation of APC rack mount UPSs. This model replaces the legendary SUA750RM2U which has been discontinued from production recently. The features are similar to the features of the previous APC 750 with the addition of a new LCD display on the front. The new display shows UPS parameters and allows for control of some UPS features saving time by avoiding having to load PowerChute everytime you want to do anything with the UPS. The new design is sleek, and the functionality is legendary as always.
If you need help figuring out which back up system you need, get in touch with us right away, we'll help you get the perfect configuration for your set up.
Manufacturer: APC
Model: APC Smart-UPS 750VA LCD 120V
Condition: Brand New, Fresh Stock
Part Number: SMT750RM2U
Maximum output: 500 Watts / 750VA
Battery Protected Outlets: 6
Typical backup time at half load: 16.0 minutes (250 Watts)
Typical backup time at full load: 5.5 minutes (700 Watts)
Warranty: 3 year warranty on the unit, 2 year warranty on the battery
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
APC Smart-UPS 750VA 120V LCD SMT750RM2U User's Manual
Specifications for the APC Smart UPS 750VA RM 2U:
Output:
|
Output power capacity |
500 Watts / 750VA |
|
Max Configurable Power |
500 Watts / 750VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
57 - 63 Hz for 60 Hz nominal |
|
Waveform type |
Sine wave |
|
Output Connections |
|
(6) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
8 feet (2.44 meters) |
|
Input voltage range for main operations |
82 - 143V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
RBC™ Quantity |
1 - APCRBC123 |
|
Typical backup time at half load |
16.0 minutes (250 Watts) |
|
Typical backup time at full load |
5.5 minutes (750 Watts) |
Communications and Management:
|
Interface port |
SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
Multi-function LCD status and control console |
|
Audible alarm |
LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
|
|
Maximum width |
|
|
Maximum depth |
16.00 inches (406 mm) |
|
Net weight |
|
|
Shipping Weight |
46.70 lbs. (21.23 kg) |
| Rack Height |
2U |
|
