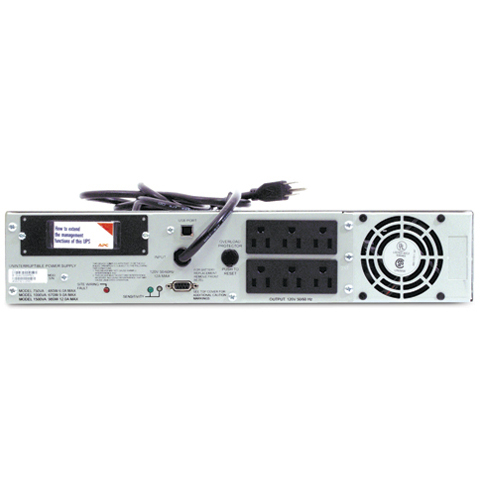

APC Smart UPS 750VA USB & Serial RM 2U
750VA 480W SUA750RM2U
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
3 Year Warranty
Manufacturer: APC
Model: APC Smart-UPS 750VA RM 2U USB & Serial 120V
Condition: Brand New, Fresh Stock
Part Number: SUA750RM2U
Maximum output: 480 Watts / 750 VA
Battery Protected Outlets: 6
Typical backup time at half load: 16.6 minutes (240 Watts)
Typical backup time at full load: 5.5 minutes (480 Watts)
Warranty: 2 Year Repair or Replace, 30 day full money back warranty
Includes: CD with software, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
A summary of features for the APC Smart-UPS 750 Rackmount 2U SUA750RM2U:
- Adjustable voltage sensitivity
- Adjustable voltage-transfer points
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Disconnected battery notification
- Front-access servicing
- Generator compatible
- Hot-swappable batteries
- InfraStruXure Manager compatible
- Intelligent battery management
- LED status indicators
- Network manageable
- Power conditioning
- Predictive failure notification
- Resettable circuit breakers
- Safety-agency approved
- Serial Connectivity
- SmartSlot
- Temperature-compensated battery charging
- USB connectivity
- User-replaceable batteries
APC Smart-UPS 750 RM 2U SUA750RM2U User's Manual
Specifications for the APC Smart UPS 750 SUA750RM2U:
Output:
|
Output power capacity |
480 Watts / 750VA |
|
Max Configurable Power |
480 Watts / 750 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sine wave |
|
Output Connections |
|
(6) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
8 feet (2.44 meters) |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC22 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
16.6 minutes (240 Watts) |
|
Typical backup time at full load |
5.5 minutes (480 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
|
|
Maximum width |
17.00 inches (432 mm) |
|
Maximum depth |
18.00 inches (457 mm) |
| Rack Height |
2U |
|
Net weight |
48.00 lbs. (21.82 kg) |
|
Shipping Weight |
55.25 lbs. (25.11 kg) |
|
