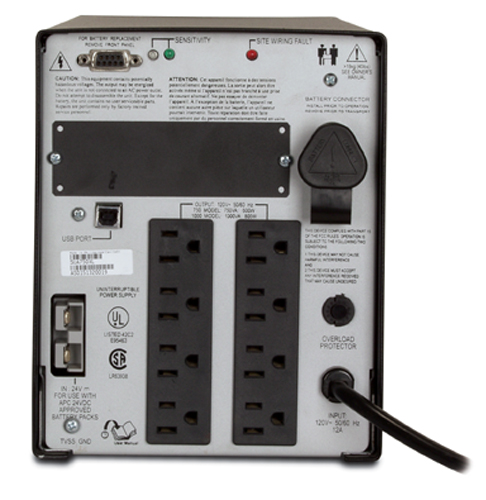

APC Smart UPS XL 750VA 120V
750VA 600W SUA750XL
Extended Runtime Model
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
2 Year Warranty
Manufacturer: APC
Model Description: APC Smart UPS XL 750VA
Condition: Brand New & Fresh Stock
Part Number: SUA750XL
Maximum output: 600 Watts / 750 VA
Battery Protected Outlets: 8
Typical backup time at half load: 50.6 minutes (300 Watts)
Typical backup time at full load: 16.6 minutes (600 Watts)
Output Waveform: Sinewave
Warranty: 2 Year Warranty
Includes: CD with software, Smart UPS signalling RS-232 cable, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
APC Smart UPS XL 750VA SUA750XL Users Manual
Output:
|
Output power capacity |
600 Watts / 750 VA |
|
Output power capacity |
600 Watts / 750 VA |
|
Max Configurable Power |
750VA |
|
Max Configurable Power |
600 watts |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(8) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
2 Meters |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC7 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
50.6 minutes (300 Watts) |
|
Typical backup time
at full load |
16.6 minutes (600 Watts) |
|
Runtime Chart |
Smart-UPS |
|
Extended Run Options |
APC Smart-UPS XL 750VA USB & Serial 120V |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot , USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
9 inches ( 21.59 cm ) |
|
Maximum width |
7 inches ( 17.02 cm ) |
|
Maximum depth |
17 inches ( 43.94 cm ) |
|
Net weight |
53 lbs. ( 24.09 kg ) |
|
Shipping Weight |
58 lbs. ( 26.36 kg ) |
|
Shipping Height |
15 inches ( 38.10 cm ) |
|
