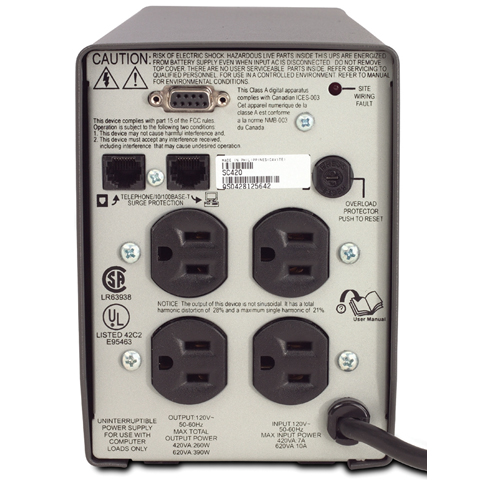

APC SMART UPS SC 420VA 260W SC420
Refurbished with New Batteries
30 Day Money Back Guarantee (includes shipping!)
1 Year Full Replacement Warranty
100% Satisfaction Guaranteed!
Manufacturer: APC
Model: APC Smart-UPS SC 420
Condition: Refurbished with New Batteries
Part Number: SC420
Maximum output: 260 Watts / 420 VA
Battery Protected Outlets: 4
Typical backup time at half load: 13 minutes (260 Watts)
Typical backup time at full load: 5.5 minutes (420 Watts)
Warranty: 1 Year Full Replacement warranty. 30 Day Full Money Back Guarantee
Includes: APC Smart-UPS SC420
The APC Smart-UPS SC 420 has 4 battery protected outlets along with phone line and data line protection. This UPS will protect your equipment from power failures and surges which can cause expensive data and hardware damage. This system can power a PC and a monitor, a cable modem and a Voip phone. This system will also work great for POS stations, cash registers, and debit machines. This UPS is fully tested, refurbished and come with fresh new batteries. A one year full replacement warranty gives you peace of mind knowing your equipment will be protected.
If you have any questions about this UPS, get in touch with us right away by calling toll free at 866-311-1945.
APC Smart-UPS SC 420VA SC420 Manual
Output:
|
Output power capacity |
260 Watts / 420 VA |
|
Max Configurable Power |
260 Watts / 420 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Stepped approximation to a sinewave |
|
Output Connections |
|
(4) NEMA 5-15R |
| | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
1.83 meters |
|
Input voltage range for main operations |
82 - 144 V |
|
Input voltage adjustable range for mains operation |
75 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC2 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
13.0 minutes (130 Watts) |
|
Typical backup time at full load |
5.5 minutes (260 Watts) |
Communications and Management:
|
Interface port |
DB-9 RS-232 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
412 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Data Line Protection |
RJ-45 Modem/Fax/DSL/10-100 Base-T protection |
Physical:
|
Maximum height |
6.60 inches (168 mm) |
|
Maximum width |
4.70 inches (119 mm) |
|
Maximum depth |
14.50 inches (368 mm) |
|
Net weight |
22.00 lbs. (10.00 kg) |
|
Shipping Weight |
24.00 lbs. (10.91 kg) |
|
