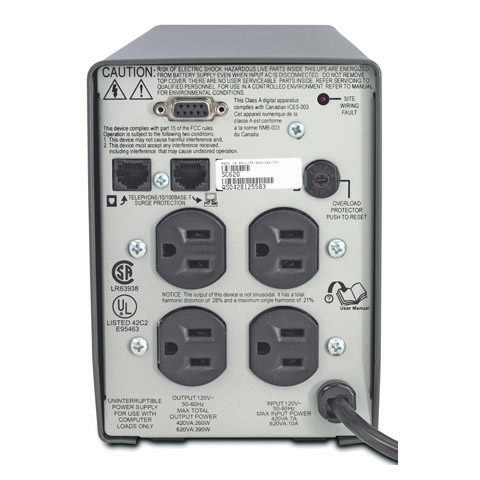

APC SMART UPS SC 620VA 390W SC620
Refurbished with New Batteries
30 Day Money Back Guarantee (includes shipping!)
1 Year Full Replacement Warranty
100% Satisfaction Guaranteed!
Manufacturer: APC
Model: APC Smart UPS SC 620
Condition: Refurbished with New Batteries
Part Number: SC620VA
Maximum output: 390 Watts / 620 VA
Battery Protected Outlets: 4
Typical backup time at half load: 16 minutes (195 Watts)
Typical backup time at full load: 5.5 minutes (390 Watts)
Waveform Type: Stepped approximation to sine wave
Warranty: 1 Year Full Replacement warranty. 30 Day Full Money Back Guarantee
Includes: APC Smart UPS SC 620
The APC Smart UPS SC 620 has 4 battery protected outlets. The computer, monitor and cable modem should be plugged in to ensure that your system is protected from surges, power anomalies and power failure.
Protecting your computer equipment from surges and power failures is essential in order to avoid lost data and damage to expensive computer equipment. This UPS can handle your computer, monitor, cable modem and VoIP phone.
This UPS is suitable for use with POS systems, cash registers, debit machines. This UPS is ideal for restaurants and retail stores to protect the POS equipment from damage due to power failure.
If you have any questions about this UPS, get in touch with us right away by calling toll free at 866-311-1945.
APC Smart-UPS SC 620VA User's Manual
Output:
|
Output power capacity |
|
|
Max Configurable Power |
390 Watts / 620 VA |
|
Nominal output voltage |
120V |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
|
Waveform type |
Stepped approximation to a sinewave |
|
Output Connections |
|
(4) NEMA 5-15R (Battery Backup) |
| | |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet (1.83 meters) |
|
Input voltage range for main operations |
82 - 144 V |
| Input voltage adjustable range for mains operation |
75 - 154V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
SC620 Battery |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
16 minutes (195 Watts) |
|
Typical backup time at full load |
5.5 minutes (390 Watts) |
Communications and Management:
|
Interface port |
DB-9 RS-232 |
|
Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
412 Joules |
| Data Line Protection |
RJ-45 Modem/Fax/DSL/10-100 Base-T protection |
| Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
6.60 inches (168 mm) |
|
Maximum width |
4.70 inches (119 mm) |
|
Maximum depth |
14.50 inches (368 mm) |
|
Net weight |
27.00 lbs. (12.28 kg) |
|
Shipping Weight |
29.00 lbs. (13.18 kg) |
|
