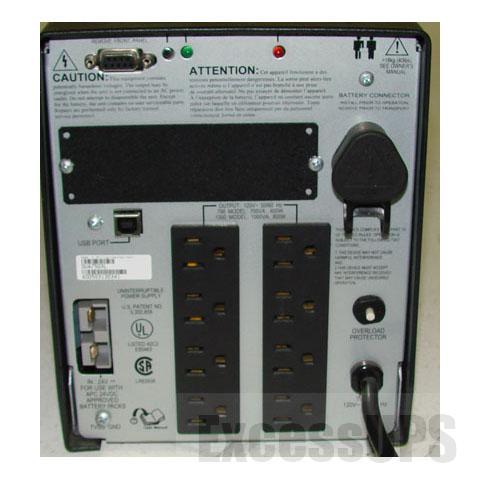

APC SMART-UPS 750XL SUA750XL 750VA
BATTERY BACKUP
At ExcessUPS we professionally refurbish and thoroughly
test each and every UPS. Every refurbished APC UPS has brand new high quality
batteries installed that meet or exceed APC’s specifications. We use high
quality long life batteries that provide reliable and dependable back up
power.
A
940-0024C serial communications cable is also included in this auction. This
cable allows the user to interface with APC's PowerChute software which provides
manageability options and allows the user to customize and control the functions
of the UPS. APC PowerChute software is available free of charge at APCC.com.
This is an
excellent UPS which provides a 600W of power. It has 8 protected outlets and
provides the necessary protection against power events. This is an extended
runtime model which allows for easy expansion. An external battery pack can be
attached to this unit to increase the runtime available.
Manufacturer's
Manual
Output:
|
Output power
capacity |
600 Watts
/ 750 VA |
|
Output power
capacity |
600 Watts
/ 750 VA |
|
Max Configurable
Power |
750VA
|
|
Max Configurable
Power |
600 watts
|
|
Nominal output
voltage |
120V
|
|
Output Voltage
Distortion |
less than 5% at
full load |
|
Output Frequency
(sync to mains) |
47-53Hz for 50Hz
nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor
|
up to 5 : 1
|
|
Waveform type
|
Sinewave
|
|
Output
Connections |
|
Input:
|
Nominal input
voltage |
120V
|
|
Input frequency
|
50/60 Hz +/- 3
Hz (auto sensing) |
|
Input Connection
Type |
|
|
Cord Length
|
2 Meters
|
|
Input voltage
range for main operations |
82 - 144 V
|
|
Input voltage
adjustable range for mains operation |
75 - 154 V
|
Batteries
and Runtime:
|
Battery type
|
Maintenance-free
sealed Lead-Acid battery with suspended electrolyte : leakproof
|
|
Replacement
battery cartridge |
RBC7
|
|
RBC™ Quantity
|
1
|
|
Typical backup
time
at half load |
50.6 minutes
(300 Watts) |
|
Typical backup
time
at full load |
16.6 minutes
(600 Watts) |
|
Runtime
Chart
|
Smart-UPS |
|
Extended Run Options |
APC Smart-UPS XL 750VA USB & Serial
120V |
Communications
and Management:
|
Interface port
|
DB-9 RS-232 ,
SmartSlot , USB |
|
Available Smart
Slot Interface Quantity |
1
|
|
Control panel
|
LED status
display with load and battery bar-graphs and On Line : On Battery : Replace
Battery : and Overload Indicators |
|
Audible alarm
|
Alarm when on
battery : distinctive low battery alarm : configurable delays
|
|
Emergency Power
Off (EPO) |
Optional
|
Surge:
|
Surge energy
rating |
459 Joules
|
|
Filtering
|
Full time
multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping
response time : meets UL 1449 |
Physical:
|
Maximum height
|
9 inches ( 21.59
cm ) |
|
Maximum width
|
7 inches ( 17.02
cm ) |
|
Maximum depth
|
17 inches (
43.94 cm ) |
|
Net weight
|
53 lbs. ( 24.09
kg ) |
|
Shipping Weight
|
58 lbs. ( 26.36
kg ) |
|
Shipping Height
|
15 inches (
38.10 cm ) |
|
