Description
Details
Manufacturer: APC

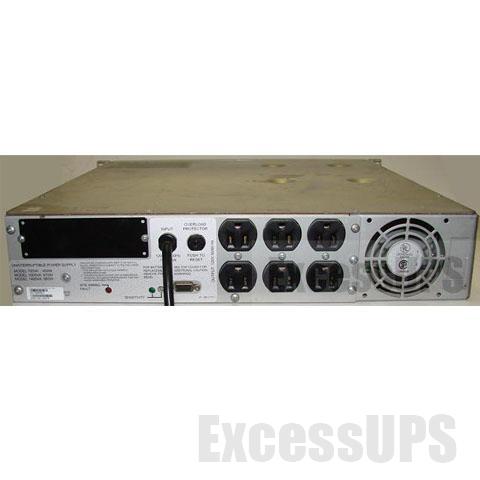

Model: APC Smart-UPS 700VA 450W RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: SU700RM2U
Maximum output: 450W / 700VA
Typical backup time at half load: 18.6 minutes (225 Watts)
Typical backup time at full load: 5.8 minutes (450 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 700VA 450W 120V SU700RM2U Manual
SU700RM2U - APC Smart-UPS Specifications:
Main:
Main Input Voltage |
120V |
||||
Main Output Voltage |
120V |
||||
Rated Power in W |
450W |
||||
Rated Power in VA |
700VA |
||||
Input Connection Type |
|
||||
Output Connection Type |
|
||||
Number of rack unit |
2U |
||||
Cable Length |
2.44 m |
||||
Number of Cables |
1 |
||||
Battery Type |
Lead-Acid Battery |
General:
Number of Power Module Filled Slots |
0 |
Number of Power Module Free Slots |
0 |
Redundant |
No |
Physical:
Color |
Beige |
Height |
8.9 cm |
Width |
48.3 cm |
Depth |
45.7 cm |
Net Weight |
21.82 kg |
Mounting Location |
Front |
Mounting Preference |
No Preference |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
No |
Input:
Input Voltage Limits |
75 - 154 V adjustable |
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Crest Factor |
Up to 5 : 1 |
Harmonic Distortion |
Less than 5 % at full load |
Maximum Configurable Power in VA |
700VA |
Maximum Configurable Power in W |
450W |
Transfer Time |
2ms typical |
Topology |
Line Interactive |
Waveform Type |
Sine wave |
Efficiency at full load |
95 % full load |
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
Product Certifications |
CSA |
Environmental:
Acoustic Level |
42 dBA
|
Heat Dissipation |
68 Btu/h |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Relative Humidity |
0 - 95 % |
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
Additional information |
Also provides up to 400VA of 120V with (2) NEMA 5-15 receptacles |
Extended Runtime |
0 |
Number of Battery Filled Slots |
0 |
Number of Battery Free Slots |
0 |
Battery Recharge Time |
3h |
Number of Battery Replacement Quantity |
1 |
Battery Life |
4 - 6 years |
Replacement Battery |
RBC22 |
Battery Power in VAH |
168 VAh runtime |
Battery Charger Power |
56 W rated |
Communications & Management:
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
Emergency Power Off (EPO) |
Optional |
Free Slots |
1 |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
Surge Energy Rate |
459 J
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 700VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
