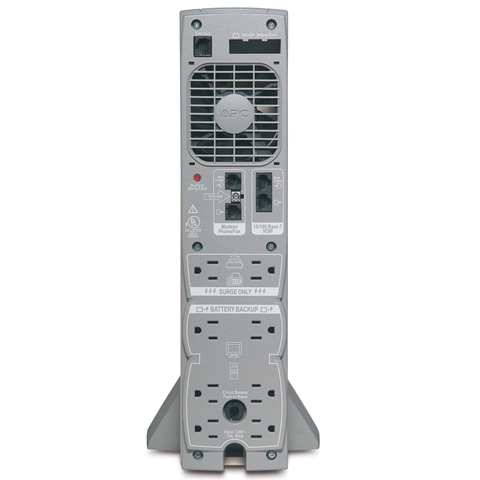

APC Back UPS RS 1500 BR1500
1500VA 865W
Fresh NEW Stock
30 Day Money Back Guarantee!
3 Year Warranty
A new version of this product has been released, check out the Back-UPS Pro 1500 BR1500G. Manufacturer: APC
Model Description: APC Back-UPS RS 1500 BR1500
Condition: New & Fresh Stock
Part Number: BR1500
Maximum output: 865 Watts / 1500 VA
Battery Protected Outlets: 6
Surge Protected Outlets: 2
Typical backup time at half load: 13.9 minutes (432.50 Watts)
Typical backup time at full load: 4.2 minutes (865 Watts)
Warranty: 30 Day Money Back Guarantee! 3 Year Warranty
Includes: CD with software, Cord management straps, Free trial of anti-virus : firewall : email privacy : system recovery and online backup software, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
APC Back-UPS RS 1500 Features:
- Battery failure notification
- Battery-protected and surge-only outlets
- Cold-start capable
- Serial Connectivity
- Hot-swappable batteries
- Disconnected battery notification
- Data line Surge Protection
- Automatic self-test
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Audible alarms
- User-replaceable batteries
- USB connectivity
- Serial Connectivity
- Transformer-block spaced outlets
- Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Safety-agency approved
- Lifetime data recovery warranty
- Adjustable voltage sensitivity
- Battery replacement without tools
- LED status indicators
APC Back UPS RS 1500 BR1500 User's Manual
APC Back-UPS RS 1500 BR1500 Specifications:
Output:
|
Output power capacity |
865 Watts / 1500 VA |
|
Max Configurable Power |
865 Watts / 1500 VA |
|
Nominal output voltage |
120V |
| Output Frequency (sync to mains |
60 Hz |
|
Waveform type |
Stepped Approximation to Sinewave |
| Crest Factor |
3: 1 |
|
Output Connections |
|
(6) NEMA 5-15R (Battery Backup) |
|
| (2) NEMA 5-15R (Surge Protection) |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
47 - 63 Hz |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet (1.83 meters) |
|
Input voltage range for main operations |
88 - 148V |
| Input voltage adjustable range for mains operation |
78 - 152V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leak proof |
| Typical Recharge Time |
8 hours |
| Replacement Battery |
RBC33 |
|
RBC™ Quantity |
1 |
|
Typical backup time at half load |
13.9 minutes (432.50 Watts) |
|
Typical backup time at full load |
4.2 minutes (865 Watts) |
Communications and Management:
| Interface Port |
USB |
|
Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge:
|
Surge energy rating |
420 Joules |
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Data Line Protection |
RJ-11 Modem/Fax/DSL protection (two wire single line),RJ45 10 Base-T Ethernet protection |
Physical:
|
Maximum height |
14.60 inches (371 mm) |
|
Maximum width |
3.40 inches (86 mm) |
|
Maximum depth |
13.10 inches (333 mm) |
| Rack Height |
2U |
|
Net weight |
25.00 lbs. (11.36 kg) |
| Shipping weight |
26.00lbs (11.82 kg) |
|
