Description
Details
Manufacturer: Eaton Powerware

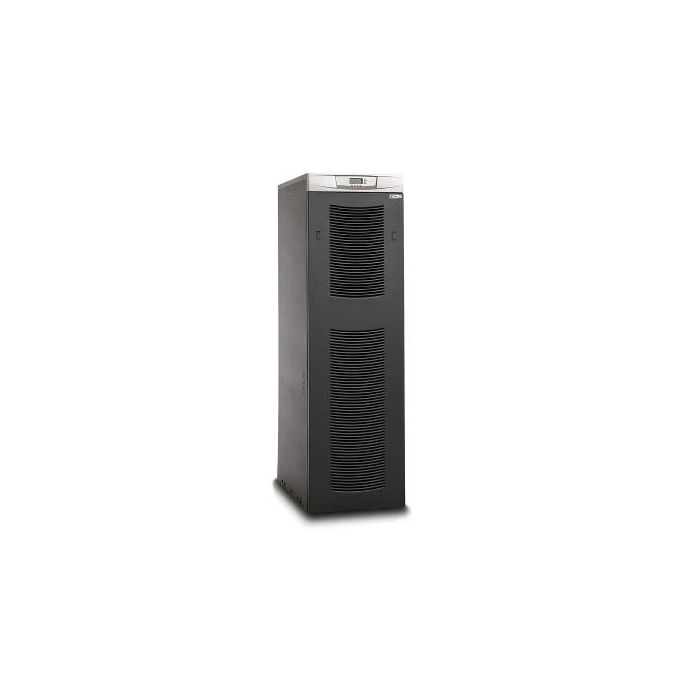

Model: 9355-20KVA Eaton Powerware 20kVA UPS
Condition: Refurbished with New Batteries
Part Number: 9355-20KVA
Warranty: 1 Year Extended Warranty, additional warranty available
The 9355-20KVA comes refurbished with new batteries. The Eaton UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
9355-20KVA Specifications:
Power |
|
Ratings (kVA/Watts) |
20 kVA/18 kW at 0.9 power factor |
Topology |
Double conversion |
Electrical Input |
|
Nominal input voltage |
208V/120V, 220V/127V +10, -15% 480V/277V, 600V (480+600 with transformer) 400V models also available |
Operating frequency |
50/60 Hz (45 to 65 Hz) |
Input power factor |
0.99 typical |
Input current distortion |
<5% THD |
Electrical Output |
|
Nominal output voltage |
208/120, 220/120 Vac |
Output voltage regulation |
±1% static; ±4% dynamic with 100% step load recovery within 1 ms response time |
Efficiency |
91%, typical |
Heat dissipation (BTU/hr) |
20 kVA models 6,762 @ 208V and 220V input 10,450 @ 480V and 600V (with input isolation transformer) |
Battery |
|
Battery type |
9 Ah, sealed, lead-acid, maintenance-free |
Battery runtime |
18 min |
Battery replacement |
Field-replaceable |
Charger |
Default is 8A |
General |
|
Diagnostics |
Full system self-test at startup |
UPS bypass |
Automatic on overload or UPS failure |
Parallel for redundancy |
Yes, using Powerware Hot Sync technology and capacity |
weight |
1160 lbs |
Overload |
150% for 5 sec / 125% for 1 min (online), 110% for 10 min |
Communications |
|
LCD display |
Graphical LCD with blue backlight |
LEDs |
(4) LEDs for notice and alarm |
Audible alarms |
Yes |
Communication ports |
(1) RS-232, (1) relay contact, (1) REPO, (2) environmental input |
Communication slot |
(2) X-Slot communication bays |
Power management software |
Bundled Software Suite CD |
Environmental |
|
Operating temperature |
50–104ºF (10–40ºC), 45ºC with 7.5% derating; Optimal battery performance: 77ºF (25ºC) |
Storage temperature |
32–77ºF (0–25ºC); Recommended battery storage: 59–77ºF (15–25ºC) |
Relative humidity |
0–95%, non-condensing |
Audible noise |
<58 dBA at 1 meter depending on load |
Altitude |
<3000m |
Additional Info
Additional Info
Manufacturer | Eaton Powerware |
---|---|
Form Factor | Tower |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 208V AC, 230V AC (EU), 240V AC |
Output (VA) | 20000VA |
Output Voltage | 208V AC, 230V AC (EU), 240V AC |
PDU Total Outlets | No |
