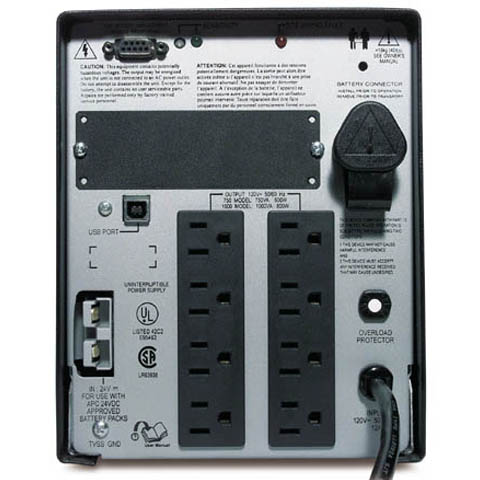

APC Smart UPS XL 1000
1000VA 800W 1000XL
SUA1000XL
NEW & Fresh Stock
30 Day Full Money Back Guarantee! (includes shipping!)
2 Year Warranty
Manufacturer: APC
Model Description: APC Smart UPS XL 1000 1000VA 800W USB & Serial 120V
Condition: Brand New & Fresh Stock
Part Number: SUA1000XL
Maximum output: 800 Watts / 1000 VA
Battery Protected Outlets: 8
Typical backup time at half load: 33.3 minutes (400 Watts)
Typical backup time at full load: 9.6 minutes (800 Watts)
Output Waveform: Sinewave
Warranty: 2 Year Warranty
Includes: CD with software, Smart UPS signaling RS-232 cable, USB cable, User Manual
The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices
Summary of features of the APC Smart UPS XL 1000:
Adjustable voltage sensitivity
Adjustable voltage-transfer points
Automatic restart of loads after UPS shutdown
Automatic self-test
Boost and Trim Automatic Voltage Regulation (AVR)
Cold-start capable
Disconnected battery notification
Generator compatible
Hot-swappable batteries
InfraStruXure Manager Compatible
Intelligent battery management
LED status indicators Network manageable
Plug-and-Play external batteries
Power conditioning
Predictive failure notification
Resettable circuit breakers
Safety-agency approved
Scalable runtime
Serial Connectivity
SmartSlot
Temperature-compensated battery charging
User-replaceable batteries
APC Smart-UPS XL 1000 SUA1000XL User's Manual
Detailed specifications for the APC Smart UPS XL 1000:
Output:
|
Output power capacity |
800 Watts / 1000 VA |
|
Max Configurable Power |
800 Watts / 1000 VA |
|
Nominal output voltage |
120V |
|
Output Voltage Distortion |
less than 5% at full load |
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
|
Crest Factor |
up to 5 : 1 |
|
Waveform type |
Sinewave |
|
Output Connections |
|
(8) NEMA 5-15R |
| |
Input:
|
Nominal input voltage |
120V |
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connection Type |
|
NEMA 5-15P |
| |
|
Cord Length |
6 feet ( 1.83 meters ) |
|
Input voltage range for main operations |
82 - 144V |
|
Input voltage adjustable range for mains operation |
75 - 154V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC7 |
|
RBC™ Quantity |
1 |
|
Typical backup time
at half load |
33.3 minutes (400 Watts) |
|
Typical backup time
at full load |
9.6 minutes (800 Watts) |
|
Runtime Chart |
Smart-UPS XL |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot, USB |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
|
|
Maximum width |
6.70 inches (170 mm) |
|
Maximum depth |
17.30 inches (439 mm) |
|
Net weight |
60.00 lbs. (27.27 kg) |
|
Shipping Weight |
65.00 lbs. (29.55 kg) |
|
