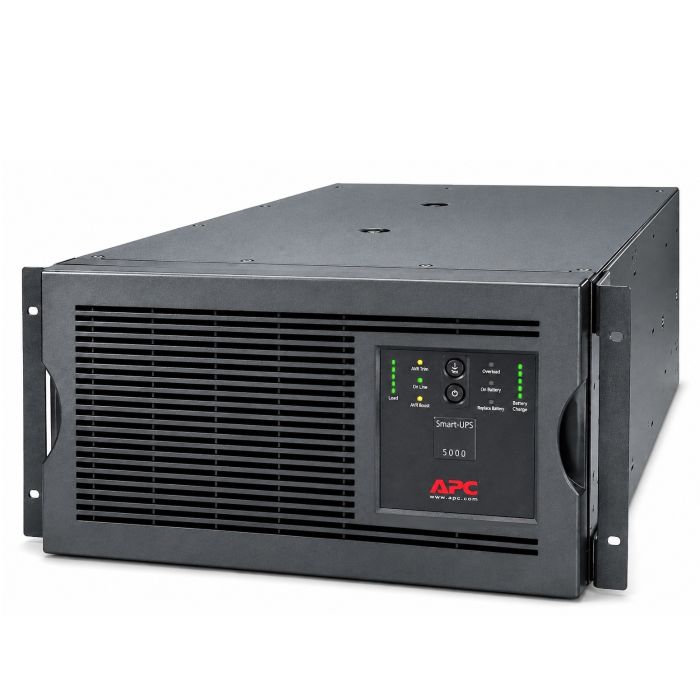

APC Smart-UPS 5000VA 4kW RM 5U 30A 208V Out:(2)L6-20R,(2)L6-30R, SUA5000RMT5U - Refurb
APC Smart-UPS 5000VA 4000W RM 5U 208V 30A
Model: SUA5000RMT5U
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Line-Interactive UPS - Pure Sine Wave Output
Integrated Network Management Card
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$1,799.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS 5000VA 4000W Rackmount 5U Line-Interactive UPS 208V
Condition: New batteries, refurbished UPS
Part Number: SUA5000RMT5U
Maximum output: 4000WÂ /Â 5000VA
Typical backup time at half load: 26.7 minutes (2000 Watts)
Typical backup time at full load: 9.4 minutes (4000 Watts)
Warranty: 1 year full replacement warranty Â
Description:Â The APC Smart-UPS SUA5000RMT5U is a 5000VA / 4000W line-interactive UPS designed to provide reliable power protection for servers, networking equipment, telecommunications systems, and other critical applications. Operating at 208V, it features pure sine wave output, Automatic Voltage Regulation (AVR), and output connections including (2) NEMA L6-20R and (2) NEMA L6-30R receptacles. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty, the SUA5000RMT5U delivers dependable enterprise-grade power protection.
Â
Â
Â
APC Smart-UPS 5000VA 4000W RM 5U SUA5000RMT5U - User Manual
Â
Â
SUA5000RMT5U - APC Smart-UPS 5000VA 4000W RM 5U Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Main Output Voltage |
208V |
||||
|
Rated Power in W |
4000W |
||||
|
Rated Power in VA |
5000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
5U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
2 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC55 |
|
Battery Power in VAH |
1632 VAh runtime |
|
Battery Charger Power |
542 W rated |
|
Hot-Swappable Batteries |
Yes |
|
Intelligent Battery Management |
Yes |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.74 in (22.2 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
25.98 in (66 cm) |
|
Net Weight |
215.46 lb(US) (97.73 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Foad |
131...268 V adjustable |
|
Input Frequency |
50/60 Hz +/- 5 Hz manual switch |
|
Input Plug Type |
NEMA L6-30P |
|
Input Voltage |
208V AC |
|
Input Power Feed |
Single Phase |
|
Input Cord Length |
8 ft (2.4 m) |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
5000VA |
|
Max Configurable Power (Watts) |
4000W |
|
Output Voltage |
208V AC |
|
Harmonic Distortion |
Less Than 5% at Full Load |
|
Transfer Time |
2ms typical : 4ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Pure Sine wave |
|
Output Receptacles |
(2) NEMA L6-20R, (2) NEMA L6-30R |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA
|
Environmental:
|
Acoustic Level |
53 dBA
|
|
Heat Dissipation |
344 Btu/h |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Operation |
32…113 °F (0…45 °C) |
|
Ambient Air Temperature for Storage |
23…131 °F (-5…55 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0…95% |
|
Storage Relative Humidity |
0…95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
0 |
|
Pre-Installed SmartSlot™ Cards |
Network Management Card |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Communication Ports |
RS-232 Serial |
|
Remote Management |
Web / SNMP |
|
User Interface |
LED Status Display with Load & Battery Bar Graphs |
|
Event Notifications |
Supported via Network Management Card |
|
Remote Shutdown |
Supported |
|
EPO (Emergency Power Off) |
Yes |
Surge Protection & Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
