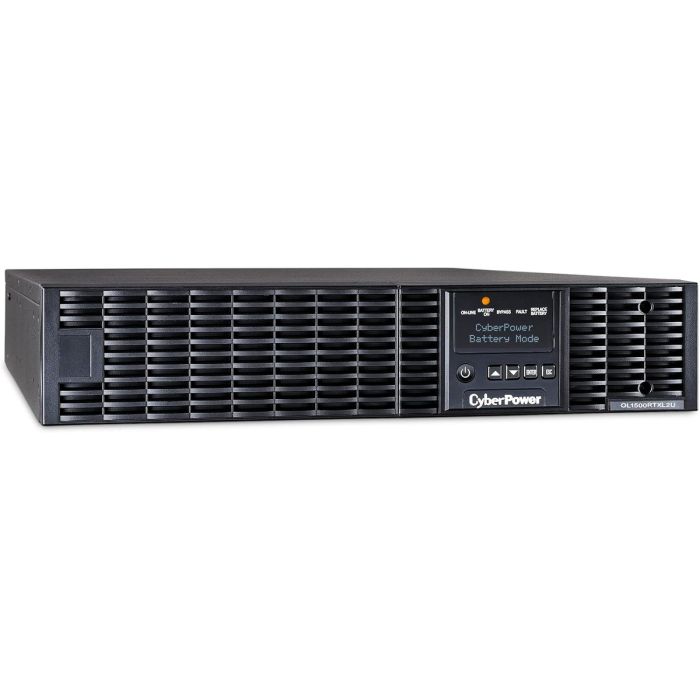

CyberPower Smart App LCD UPS 1500VA 1350W 120V 15A OL1500RTXL2U - Refurbished

CyberPower Smart App LCD UPS 1500VA 1350W RM 2U
Model: OL1500RTXL2U
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Double-Conversion UPS - Simulated Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Back Order

Manufacturer: CyberPower
Model: CyberPower Smart App LCD UPS 1500VA 1350W, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: OL1500RTXL2U
Maximum output: 1350W / 1500VA
Typical backup time at half load: 11 minutes (675 Watts)
Typical backup time at full load: 3.4 minutes (1350 Watts)
Warranty: 1 year full replacement warranty


CyberPower Smart App LCD UPS 1500VA 1350W OL1500RTXL2U User's Manual


OL1500RTXL2U - CyberPower Smart App LCD UPS 1500VA Specifications:

General:

Energy Saving

GreenPowerECO Mode Efficiency >95%

Energy Star Certified

Yes

UPS Topology

Online Double Conversion


Battery:

Battery Quantity

3

Battery Size

12 V / 9 Ah

Battery Type

Sealed Lead-Acid Battery

Extended Battery Module

BP36V60ART2U

Hot Swappable

Yes

Replacement Battery Cartridge

RB1290X3L

Replacement Battery Cartridge Quantity

1

Runtime at Full Load

3.4 min

Runtime at Half Load

11 min

Smart Battery Management (SBM) Mode

Yes

Typical Recharge Time

4 Hours (0% to 90% charged)


Input:

Circuit Breaker

15A

Cold Start

Yes

Cord Length

10 ft (3 m)

Input Frequency Range

40 Hz – 70 Hz

Input Plug Type

NEMA 5-15P

Input Power Factor

0.99

Input Voltage Range

60 VAC – 69 VAC for 0–60% Load

70 VAC – 79 VAC for 0–70% Load

80 VAC – 89 VAC for 0–80% Load

90 VAC – 95 VAC for 0–90% Load

96 VAC – 150 VAC for 0–100% Load



Nominal Input Voltage

100 – 125 VAC


Output:

Bypass

Internal Bypass (Automatic and Manual)

Crest Factor

3:1

ECO Mode Voltage Regulation

±10%, ±15% (Configurable)

Harmonic Distortion

< 3% at Linear Load

< 5% at Non-Linear Load

On Battery Frequency

50/60 Hz ± 0.25Hz (auto-sensing or configurable)

On Battery Voltage

100/110/115/120/125 VAC ± 2% (configurable)

On Battery Waveform

Sine Wave

Outlet Type

(8) NEMA 5-15R

Outlets – Total

8

Output Power Factor

0.9

Overload Protection

Line Mode: 105% ~ 125% Load – 1 min
Line Mode: 126% ~ 150% Load – 10 sec
Battery Mode: 105% ~ 130% Load – 10 sec
Battery Mode: 131% – 150% Load – 2 sec

Short Circuit Protection

UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection

Typical Transfer Time

0 ms

VA

1500VA

Watts

1350W


Surge Protection & Filtering:

EMI/RFI Filtration

Yes

Phone / Network Protection RJ11/RJ45

1-In / 1-Out (Combo)

Surge Suppression (Joules)

1780 J


Management & Communications:

Audible Alarms

Battery Mode
Low Battery
Overload
Fault

HID Compliant USB Port

Yes

LCD

Multifunction LCD

LED Indicators

Power On (White)
Line Mode (Green)
Battery Mode (Yellow)
Bypass Mode (Yellow)
Fault (Red)
Replace Battery (Red)

Management Cable

USB Cable
Serial Cable

Removable LCD Control Panel Option

Yes – Requires DB26 cable (not included)

Serial Port

1 Dry Contact

Software (Free Download)

PowerPanel® Business


Physical:

Form Factor

Rackmount (Not included)

Material of Construction

Metal

Rack Height

2U (Not included)


Dimensions:

Physical Dimensions – (WxHxD) (cm)

43.18 x 8.89 x 42.93 (cm)

Physical Dimensions – (WxHxD) (in)

17 x 3.5 x 16.9 (in)

Physical Dimensions – (WxHxD) (mm)

432 x 89 x 429 (mm)

Weight (kg)

17.96

Weight (lb)

39.6
