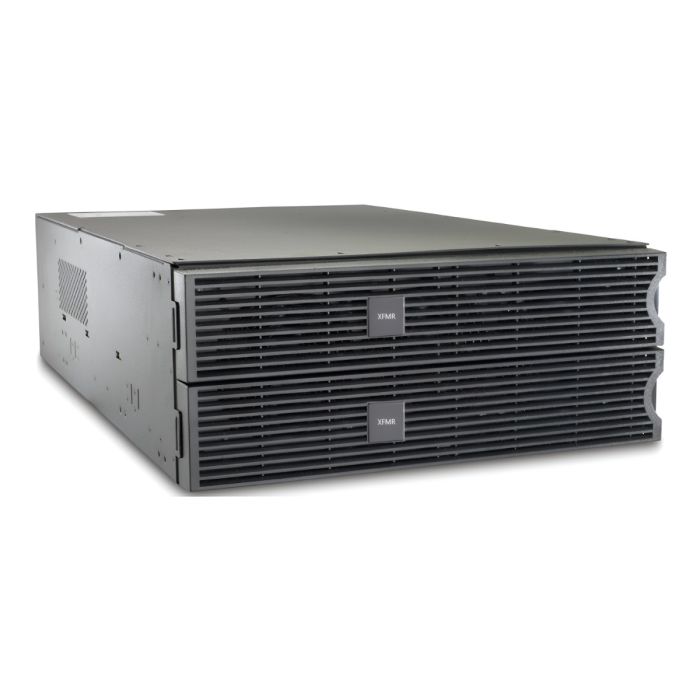

APC Step down Transformer 208V/120V RM 4U, 10000VA 60A APTF10KT01 - Refurbished

APC 208V/120V RM 4U, 10000VA 60A Step down Transformer
Model: APTF10KT01
Input: Hard Wire 3-wire (2PH + G)
Output: (2) L5-20R, (2) NEMA L14-30R
Refurbished Step down transformer
1 Year Warranty

Extended Warranty

1 Year Included

2 Year + $340.00

3 Year + $595.00

In stock

Quantity

Manufacturer: APC
Model: APC 10KVA Step down Transformer 208V to 120V
Condition: Refurbished
Part Number: APTF10KT01
Maximum Output: 10kVA
Warranty: 1 Year Full Replacement Warranty

APC 208V/120V 10KVA Step down Transformer - APTF10KT01 - User's Manual

APTF10KT01 Specifications:

Main:

Main Input Voltage	208V
Main Output Voltage	120V, 208V, 240V
Output connector type	Hard Wire 3-wire (2PH + G) 1, Hard Wire 4-wire (2PH+N+G) 1
Rack Height	4U

Physical:

Color	Black
Height	6.89 in (17.5 cm)
Width	17.01 in (43.2 cm)
Depth	29.49 in (74.9 cm)
Net Weight	220.46 lb(US) (100 kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-mounted with kit

Input:

Acceptable Input Voltage	200V-240V
Max line current	60A
Input Current Limits	60A
Load Capacity	10000VA
Input Frequency	45Hz-65Hz
Number of Input Connectors	1 Hard Wire 3-wire (2PH + G)

Output:

Maximum Total Current Draw per Phase

60A

Number of Power Socket Outlets

Protection Type

Circuit Breaker

Efficiency

95%

Number of Power Socket Outlets

(2) NEMA L5-20R
(2) NEMA L14-30R

Conformance:

Product Certifications

C-tick
CE
CSA
GOST
UL Listed
VDE

Environmental:

Ambient Air Temperature for Operation	32-104°F (0-40 °C)
Relative Humidity	0-95%
Operating Altitude	0-10000 ft
Ambient Air Temperature for Storage	-13-149 °F (-25-65 °C)
Storage Relative Humidity	0-95%
Storage Altitude	0-50000 ft (0.00…15240.00 m)
