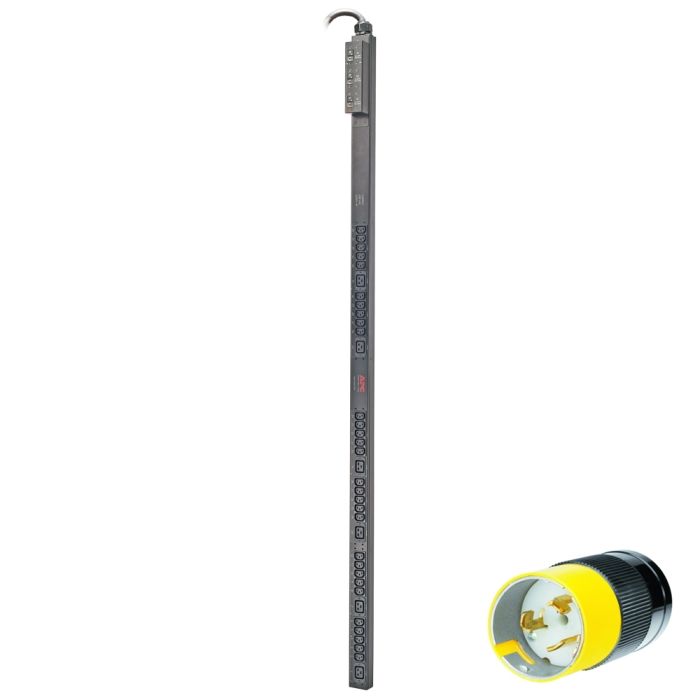

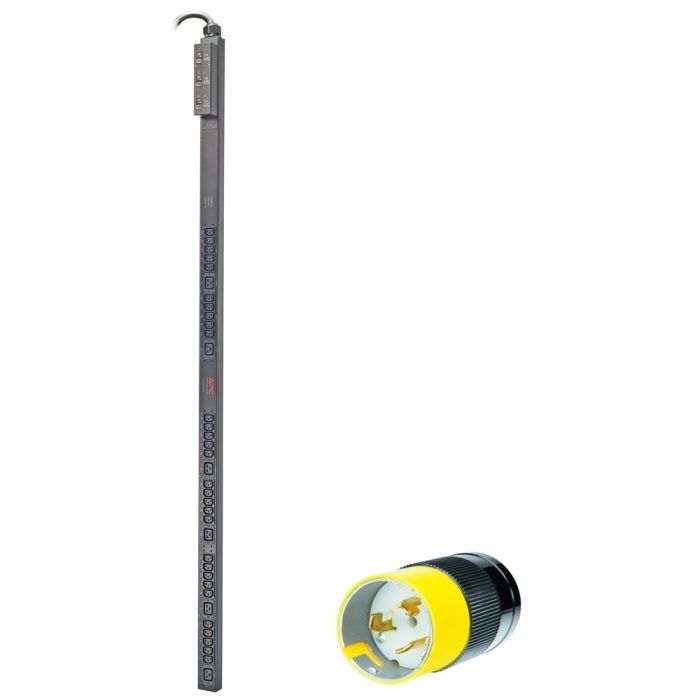

APC AP7568 Rack PDU, Basic, 0U, 12500W, 35A, 208V, Output:(30) C13, (6) C19 - Refurbished
APC AP7568 12.5kW Rack PDU, Basic, Zero U, 35A, 208V
Model: AP7568
Input: 208V 3PH
Input Connections: CS8365
Cord Length: 2.99ft (0.9meters)
Output: 208V
Output Connections: (30) IEC 60320 C13, (6) IEC 60320 C19
Refurbished PDU
1 Year Replacement Warranty
$399.99
In stock
Manufacturer: APC
Model Description:Â APC Basic Rack PDU, Zero U, 35A 208V, (30)C13, (6)C19
Condition: Refurbished
Part Number: AP7568
Output Voltage: 208V
Input Voltage:Â 208V 3PH
Warranty:Â 1 Year Full Replacement Warranty
Description: The AP7568 is a vertical (Zero U) rack PDU by APC designed for data centers. It distributes power efficiently within a rack and provides multiple outlets (C13 and C19) to support servers and network equipment. It offers high power capacity and is easy to install without taking up rack space.
Â
 APC AP7568 Basic Rack PDU, Zero U, 35A 208V - User Manual
AP7568 Specifications:
Key Features:
|
Output Connections |
|
||||
|
Nominal Output Voltage |
208V |
||||
|
Nominal Input Voltage |
208V 3PH |
||||
|
Input Connections |
CS8365 |
||||
|
Cord Length |
2.99ft (0.9meters) |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
35 |
Input:
|
Input frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
12500VA |
|
Maximum Input Current |
35A |
|
Maximum Line Current |
35A |
Physical:
|
Maximum Height |
70.0 inches (1778mm, 177.8cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
3.5 inches (89mm, 8.9cm) |
|
Net Weight |
15.32 lbs. (6.95kg) |
|
Shipping Weight |
22.42 lbs. (10.17kg) |
|
Shipping Height |
82.99 inches (2108mm, 210.8cm) |
|
Shipping Width |
5.98 inches (152mm, 15.2cm) |
|
Shipping Depth |
5.0 inches (127mm, 12.7cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
23 - 113°F (-5 - 45°C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
