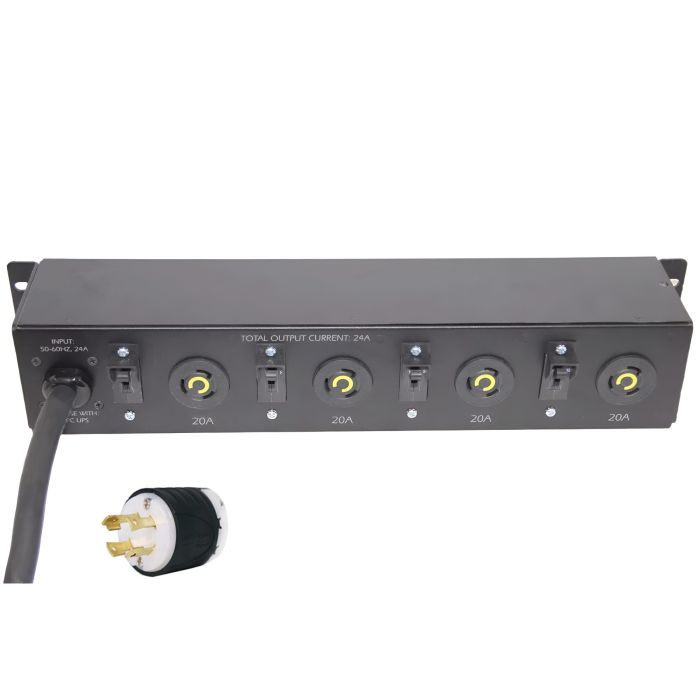

APC AP7580 Basic Rack PDU Extender 4992VA, 2U 100-208V 30A, Output:(4)L5-20R - Refurbished
APC AP7580 Basic Rack PDU Extender, 2U, 208V 30A L14-30P, (4) NEMA L5-20R
Model: AP7580
Input: NEMA L14-30P
Output: (4) NEMA L5-20R
Refurbished PDU
1 Year Warranty Included
$249.99
In stock
Manufacturer:Â APC
Model:Â AP7580
Description:Â Basic Rack PDU Extender, 2U, 30A, 100-208V, (4) L5-20R - Refurbished
Input:Â NEMA L14-30P - 100V, 120V, 200V, 208V - 30A
Output: (4) NEMA L5-20R
Condition:Â Refurbished
Warranty:Â 1 Year Full Replacement Warranty, additional warranty available
APC AP7580Â Specifications:Â
 Input
|
Nominal Input Voltage |
100V, 120V, 200V, 208V |
|
Input Frequency |
50/60 Hz |
|
Input Connections |
NEMA L14-30P |
|
Cord Length |
28 ft (8.53 meters) |
|
Number of Power Cords |
1 |
|
Load Capacity |
4992VA |
|
Maximum Input Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Output
|
Nominal Output Voltage |
120V |
|
Maximum Total Current Draw |
24 |
|
Output Connections |
(4) NEMA L5-20R |
Environmental
|
Operating Temperature |
32 - 113 °F (0 - 45 °C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 3000 meters |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 15000 meters |
Physical
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
17.2 inches (437mm, 43.7cm) |
|
Depth |
3.5 inches (89mm, 8.9cm) |
|
Rack Height |
2U |
|
Weight |
14.0lbs. (6.36kg) |
|
Shipping Weight |
16.0lbs. (7.27kg) |
|
Shipping Height |
6.0 inches (152mm, 15.2cm) |
|
Shipping Width |
20.5 inches (521mm, 52.1cm) |
|
Shipping Depth |
20.5 inches (521mm, 52.1cm) |
|
Color |
Black |
