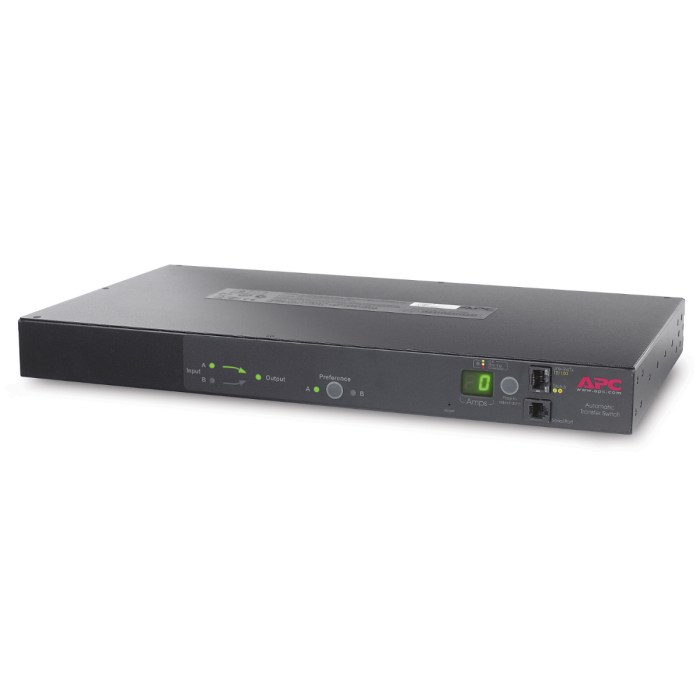

APC AP7721 Rack Automatic Transfer Switch 10A/230VAC, 12A/208VAC, Out:(12)C13 - Refurbished

Manufacturer: APC
Model: AP7721
Model Description: APC Rack Automatic Transfer Switch (ATS), 1U, 10A, 200V/208V/230V, (12) IEC C13
Condition: Refurbished
Part Number: AP7721
Input Voltage: 200V / 208V / 230V
Input Connections: (2) IEC 60320 C14
Output Connections: (12) IEC 60320 C13
Maximum Input Current: 10A
Maximum Output Current: 10A
Rack Height: 1U
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP7721 is a 1U Rack Automatic Transfer Switch (ATS) designed to provide redundant AC power for single-corded servers, networking equipment, and other critical IT devices. It accepts two independent power sources and automatically transfers connected equipment between the preferred and alternate source when necessary. The AP7721 supports 200V, 208V, and 230V input power, uses IEC 60320 C14 input connections, and provides (12) IEC 60320 C13 output receptacles. Its compact 1U rackmount design makes it ideal for server racks, network closets, and data center environments requiring redundant power protection.

APC AP7721 Rack Automatic Transfer Switch, 10A/230VAC, 12A/208VAC - User Manual

AP7721 - APC Rack Automatic Transfer Switch Specifications:

Key Features
Manufacturer	APC
Model	AP7721
Product Type	Rack Automatic Transfer Switch (ATS)
Form Factor	Rackmount
Rack Height	1U
Nominal Input Voltage	200V / 208V / 230V
Input Connection Type	IEC 60320 C14
Output Connection Type	IEC 60320 C13
Output Receptacles	(12) IEC 60320 C13
Maximum Line Current	10A
Maximum Output Current	10A
Input Frequency	47–63 Hz
Overload Protection	No Circuit Breaker
Color	Black
Automatic Transfer Switch
Transfer Switch Type	Automatic Transfer Switch (ATS)
Dual Power Source Support	Yes
Automatic Source Transfer	Yes
Preferred Power Source	Supported
Alternate Power Source	Supported
Automatic Failover	Supported
Power Redundancy	Yes
Application	Redundant Power for Single-Corded IT Equipment
Input
Main Input Voltage	200V / 208V / 230V
Input Frequency	47–63 Hz
Input Connector Type	IEC 60320 C14
Maximum Line Current	10A
Input Current Limit	10A
Input Phase	Single-Phase
Output
Output Connection Type	IEC 60320 C13
Total Number of Outlets	12
IEC C13 Outlets	(12)
Maximum Current Draw	10A
Protection Type	Without Circuit Breaker
Individual Outlet Switching	No
Individual Outlet Metering	No
ATS Operation & Redundancy
Redundant AC Inputs	Yes
Automatic Power Source Selection	Yes
Automatic Transfer Between Sources	Yes
Preferred / Primary Source Operation	Supported
Alternate / Secondary Source Operation	Supported
Automatic Failover on Source Loss	Yes
Designed for Single-Corded Loads	Yes
Rack-Level Power Redundancy	Supported
Communications & Management
Network Management	Supported
Remote Monitoring	Supported
ATS Status Monitoring	Supported
Input Source Monitoring	Supported
Web-Based Management	Supported
SNMP Management	Supported
Event Monitoring	Supported
Alarm Monitoring	Supported
Serial Configuration	Supported
RS-232 Configuration	Supported
RS-232 Configuration Cable	Included Originally
Remote Outlet Switching	No
Individual Outlet Control	No
User Interface, Alerts & Controls
Local Status Monitoring	Supported
Input Source Status Monitoring	Supported
ATS Operating Status	Supported
Preferred Source Configuration	Supported
Power Source Status Indication	Supported
Alarm Indication	Supported
Local Configuration	Supported
Remote Management	Supported
Physical
Color	Black
Rack Height	1U
Mounting Mode	Rack-Mounted
Mounting Location	Front / Rear
Mounting Preference	No Preference
Height	1.7 in (4.4 cm)
Width	17.008 in (43.2 cm)
Depth	9.02 in (22.9 cm)
Net Weight	8.66 lb (3.93 kg)
Environmental
Operating Temperature	23–113°F (-5–45°C)
Operating Relative Humidity	5–95%
Operating Altitude	0–10,000 ft (0–3048 m)
Storage Temperature	-13–149°F (-25–65°C)
Storage Relative Humidity	5–95%
Storage Altitude	0–50,000 ft (0–15,240 m)
Conformance
EN Standard	EN 55022 Class A
FCC Compliance	FCC Part 15 Class A
Shipping
Package Quantity	1
Package Height	4.5 in (11.4 cm)
Package Width	23.6 in (60 cm)
Package Length	13.7 in (34.9 cm)
Package Weight	12.540 lb (5.688 kg)
