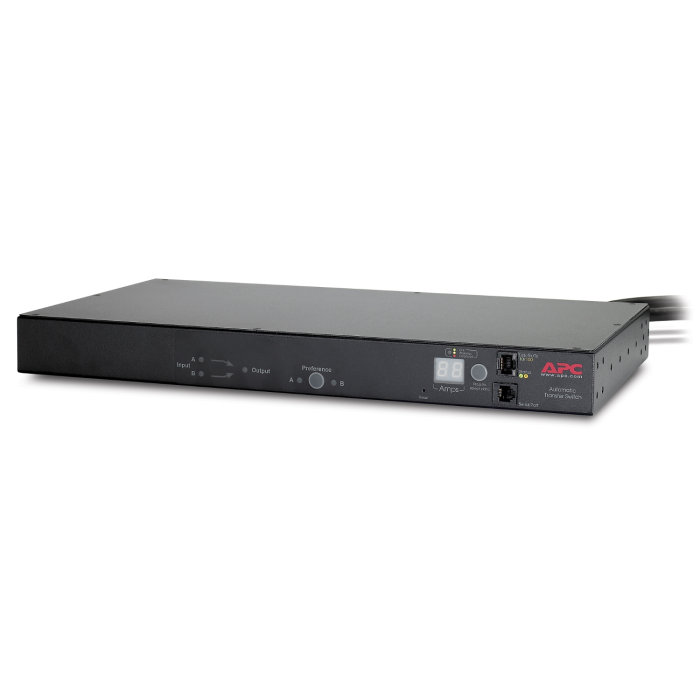

Main image Click to view image in fullscreen APC AP7730 ATS Rack PDU RM 1U, 200-208-230V 20A, Output: (8)C13, (1)C19 - Refurbished

APC AP7730 ATS Rack PDU RM 1U, 200-208-230V 20A, Output: (8)C13, (1)C19 - Refurbished

APC Automatic Transfer Switch Rack PDU, 1U, 15A, 200V-208V-230V
Model: AP7730
Input: 200V-208V
Input Connections: NEMA L6-20P
Cord Length: 8.01ft (2.4 meters)
Output: 200V-208V
Output Connections: (8) IEC 60320 C13, (1) IEC 60320 C19
1 Year Replacement Warranty , Refurbished PDU

Extended Warranty

1 Year Included

2 Year + $60.00

3 Year + $105.00

In stock

Quantity

Manufacturer: APC
Model Description: APC Rack ATS, 200-208V, 20A, L6-20 IN, (8) C13 (1) C19 OUT
Part Number: AP7730
Input Voltage: 200V-208V 20A
Warranty: 1 Year Full Replacement Warranty

The APC AP7730, model AP7730, is a high-performance Rack Automatic Transfer Switch (ATS) designed to provide reliable power distribution and redundancy for server components and networking equipment. This 1U rackmount unit is ideal for businesses looking for a reliable solution to ensure uninterrupted power to critical systems. With the ability to handle 200-208V and 20A input, the AP7730 features robust power protection and monitoring capabilities.

It is equipped with (8) C13 outlets and (1) C19 outlet, providing flexibility for various power requirements. Additionally, the AP7730 supports NEMA L6-20P input and is fully compatible with a wide range of APC devices, making it an excellent choice for enhancing system uptime and overall power efficiency.

APC AP7730 Automatic Transfer Switch Rack PDU RM 1U - User Manual

AP7730 - APC ATS Rack PDU Specifications:

Key Features:

Main Input Voltage	Main Input Voltage
Input Connection Type	NEMA L6-20P
Number of Rack Units	1U
Cable Length	8 ft (2.4 m)
Number of Cables	2

Output:

Maximum Total Current Draw	20 A
Number of Power Socket Outlets	8 IEC 60320 C13, 1 IEC 60320 C19
Protection Type	Without circuit breaker

Input:

Input frequency	47 - 63 Hz
Line Rated Current	16 A
Max Line Current	20 A
Input Current Limits	20 A

Physical:

Maximum Height	1.73 inches (44mm, 4.4cm)
Maximum Width	17.01 inches (432MM, 43.2cm)
Maximum Depth	9.02 inches (229mm, 22.9cm)
Net Weight	11.07 lbs (5.02 kg)
Mounting Location	Front, Rear
Mounting Preference	No preference
Mounting Mode	Rack-mounted
Color	Black

Environmental:

Operating Temperature	23 - 113°F (-5 - 45°C)
Operating Relative Humidity	5% to 95%
Operating Elevation	0 - 10000ft (0 - 3048 meters)
Storage Temperature	-13°F to 149°F (-25°C to 65°C)
Storage Relative Humidity	5% to 95%
Storage Elevation	0 - 50000ft (0 - 15240 meters)

Conformance:

Standards

EN 55022 Class A, FCC Part 15 Class A
